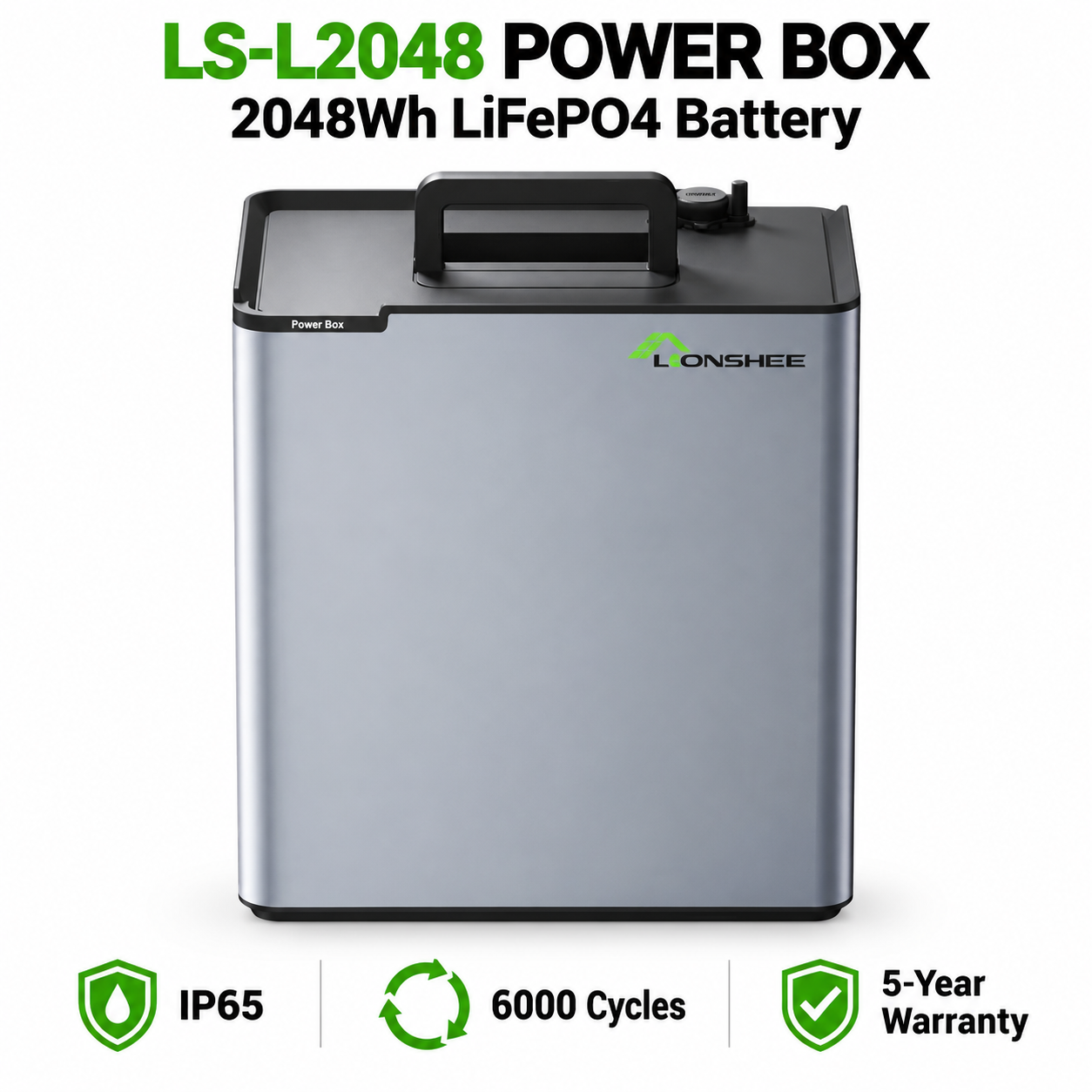

In short The LIONSHEE LS-L2048 is a stackable 2048 Wh Power Box built with A+ grade LiFePO4 cells, running at 51.2 V nominal. Connect up to 3 units in parallel for 6144 Wh - enough to broadly cover the daily electricity demand of a typical household. IP65, natural cooling, 6000 cycles, 5 years warranty. Shipping from our German and UK warehouses. |
2048 Wh Nominal capacity per unit | 6144 Wh Maximum with 3 units in parallel | 6000 Charge cycles | IP65 Protection grade |
The LS-L2048 stores the solar energy a household produces during the day so it can be used in the evening instead of being fed back at a low tariff. The enclosure measures 320 x 200 x 346 mm and weighs 18 kg, compact enough to stand under a window or against a wall, with a recessed carry handle for moving it into position. Cooling is passive: no fan, no running noise. Battery communication runs over CAN and RS-485.

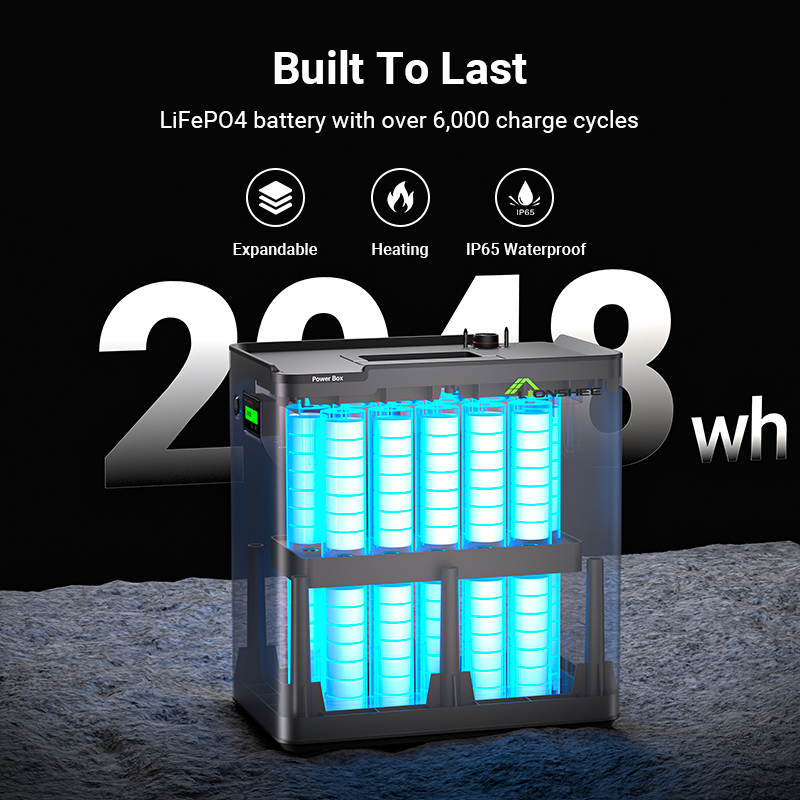

2048 Wh from A+ grade EVE LiFePO4 cellsOne Power Box stores 2048 Wh at 51.2 V nominal, with a working voltage range of 40~58.4 V. The A+ grade EVE LiFePO4 cells stay stable over a long service life, which is what makes 6000 cycles and a 5-year warranty possible. |
 |

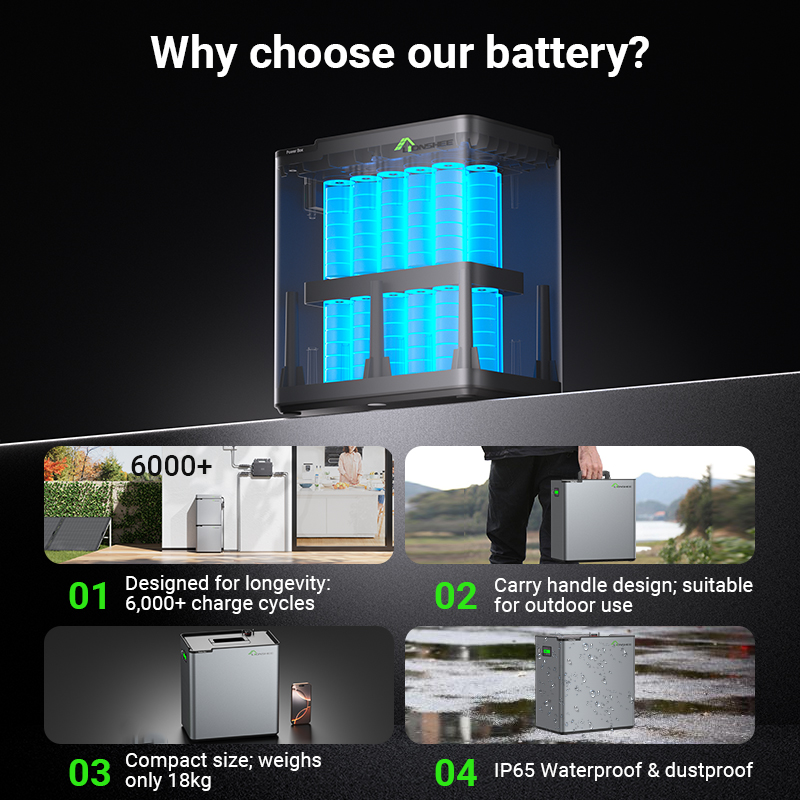

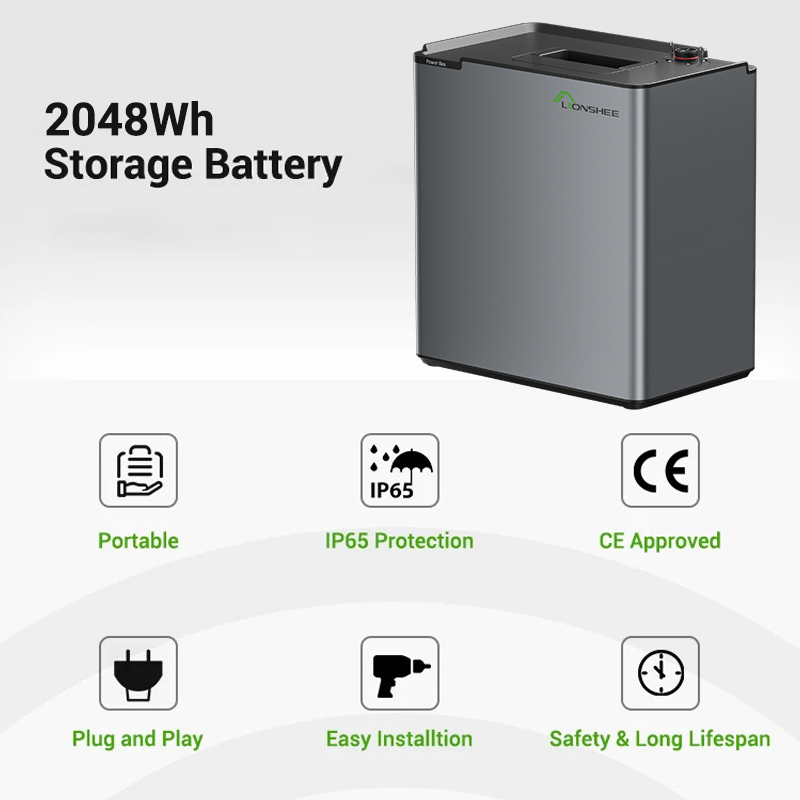

Manufacturer graphic for the LS-L2048. The binding figures are the ones in the Technical data table below. |
Expandable to 6144 Wh, one module at a timeUp to 3 units can be connected in parallel for a total of 6144 Wh. Customers can start with a single Power Box and add modules as consumption grows, instead of paying up front for storage capacity that is not yet needed. |
 |

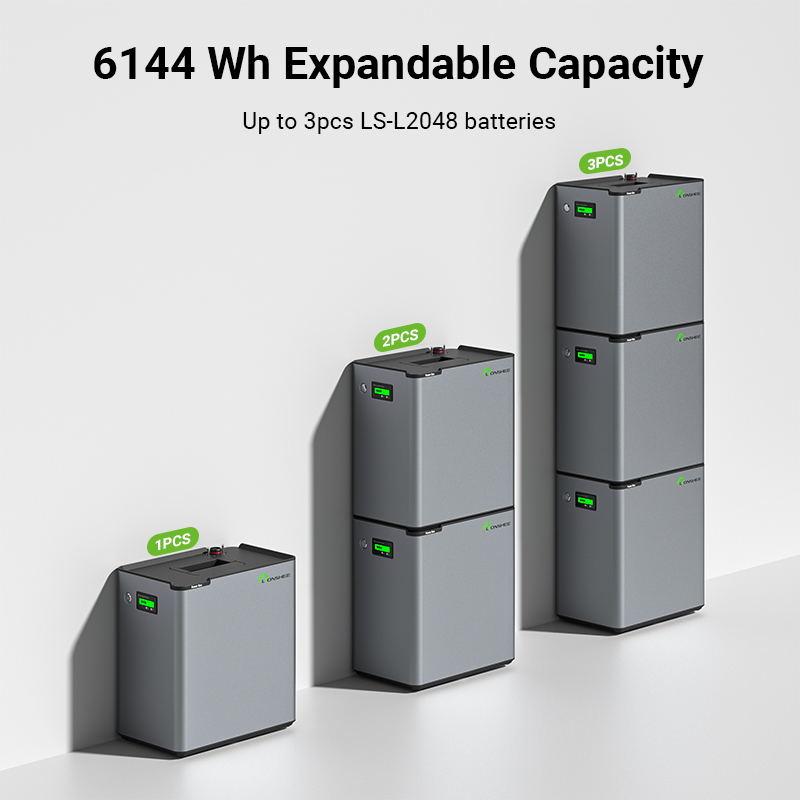

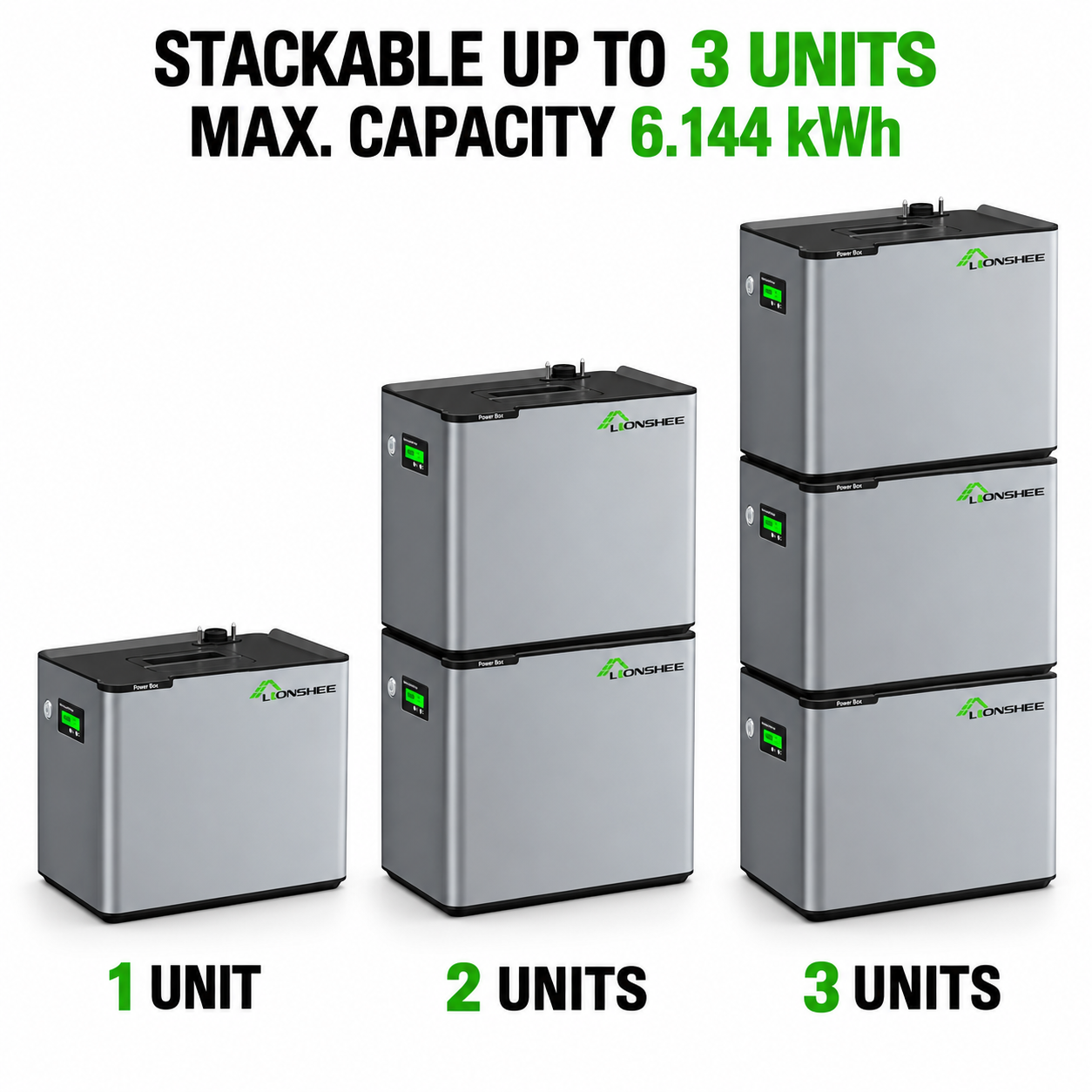

Manufacturer graphic on parallel expansion from 1 to 3 units. Binding figures: 2048 Wh per unit, 6144 Wh with 3 units. |
IP65, natural cooling, 18 kgThe housing is rated IP65 against dust and water jets and is cooled passively, so there is no fan and no running noise. At 18 kg and 320 x 200 x 346 mm it stays a single floor-standing box with a carry handle, no rack or wall frame needed. |
 |

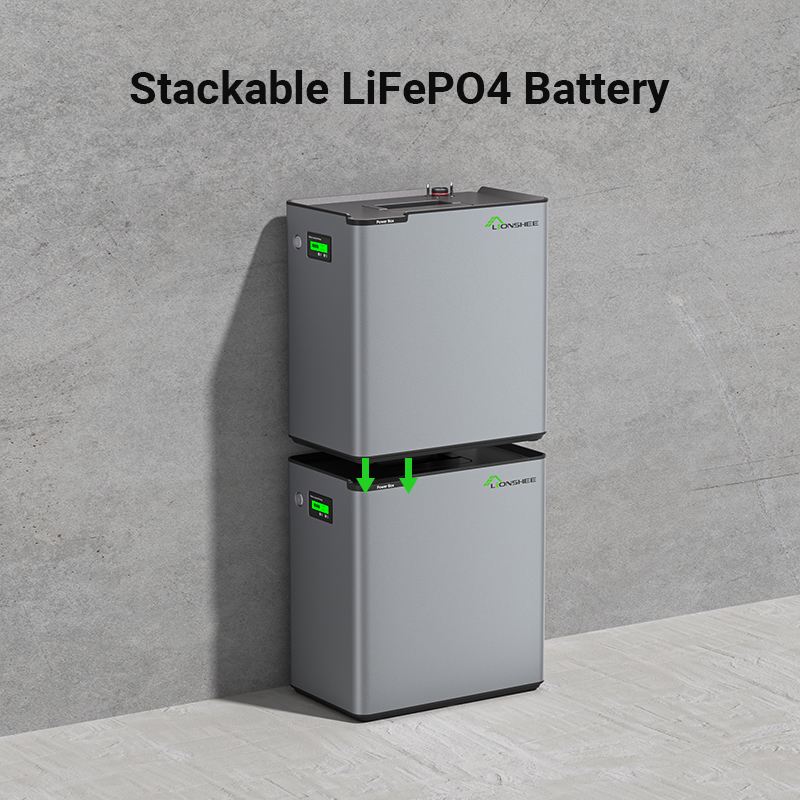

Product image showing two units stacked. A staged product shot, not a real customer installation. |
On-grid, off-grid and portableThe same unit works in grid-connected solar self-consumption, in off-grid systems and as portable outdoor power. It is also the storage module of the LIONSHEE Modular Balcony Energy Storage System, alongside LS-240W flexible panels, the LS-H1600 Smart Solar Hub and 800 W, 1600 W or 2000 W microinverters. |
 |

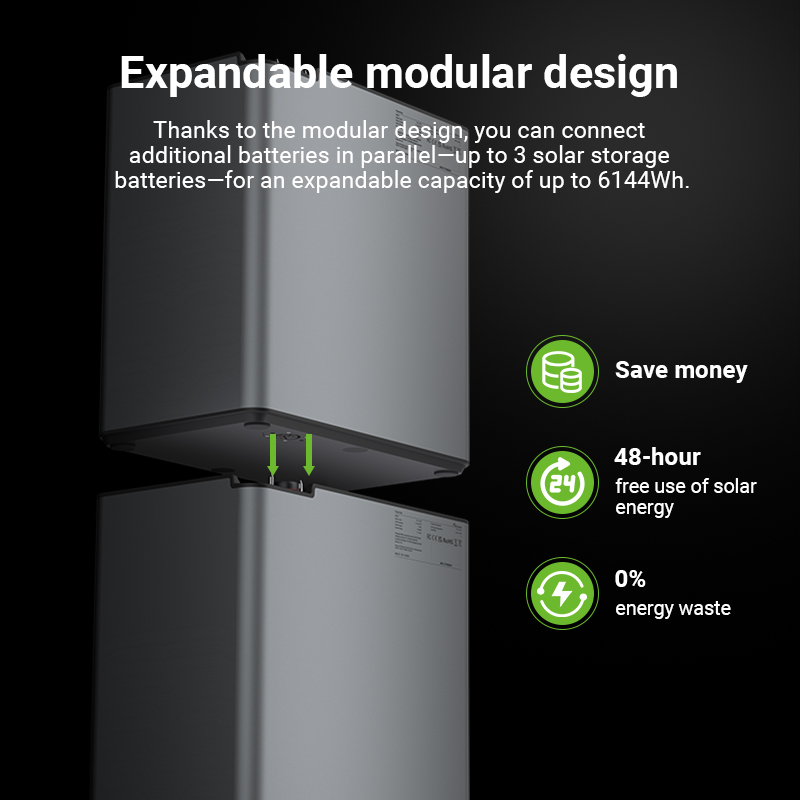

Manufacturer graphic on the modular design. The claims shown on the image are the manufacturer's; the binding figures are in the Technical data table below. |
Optional low-temperature heatingLithium iron phosphate cells must not be charged below freezing. The optional automatic low-temperature heating warms the cells first, so the battery still accepts a charge in cold climates. Charging range 0~55 °C, discharge range -20~60 °C. |
Optional built-in fire extinguisherAn automatic fire extinguishing unit can be built into the enclosure. It acts inside the box, at the cell level, without waiting for someone to notice a problem - relevant wherever the battery sits close to living space. |
| Parameter | Value |
|---|---|
| Model | LS-L2048 |
| Nominal capacity | 2048 Wh |
| Nominal voltage | 51.2 V |
| Working voltage range | 40~58.4 V |
| Battery type | LiFePO4 |
| Dimensions (W x D x H) | 320 x 200 x 346 mm |
| Weight | 18 kg |
| Units in parallel | 3 (6144 Wh in total) |
| Charging temperature range | 0~55 °C |
| Discharge temperature range | -20~60 °C |
| Protection grade | IP65 |
| Cooling | Natural cooling |
| Cycle times | 6000 |
| Warranty | 5 years |
| Protocol type | CAN / RS-485 |
| Certification | CE, RoHS, MSDS |
| Options | Low-temperature heating, built-in fire extinguisher |
Source: Power Box Datasheet LS-L2048, edition 2026.07. Packed weight 18.45 kg, single carton 405 x 270 x 395 mm.
| • | Grid-connected solar self-consumption |
| • | Balcony solar with a microinverter |
| • | Off-grid and hybrid systems |
| • | Home backup power |
| • | Garden house, workshop and outbuilding |
| • | Portable outdoor and camping power |
 |

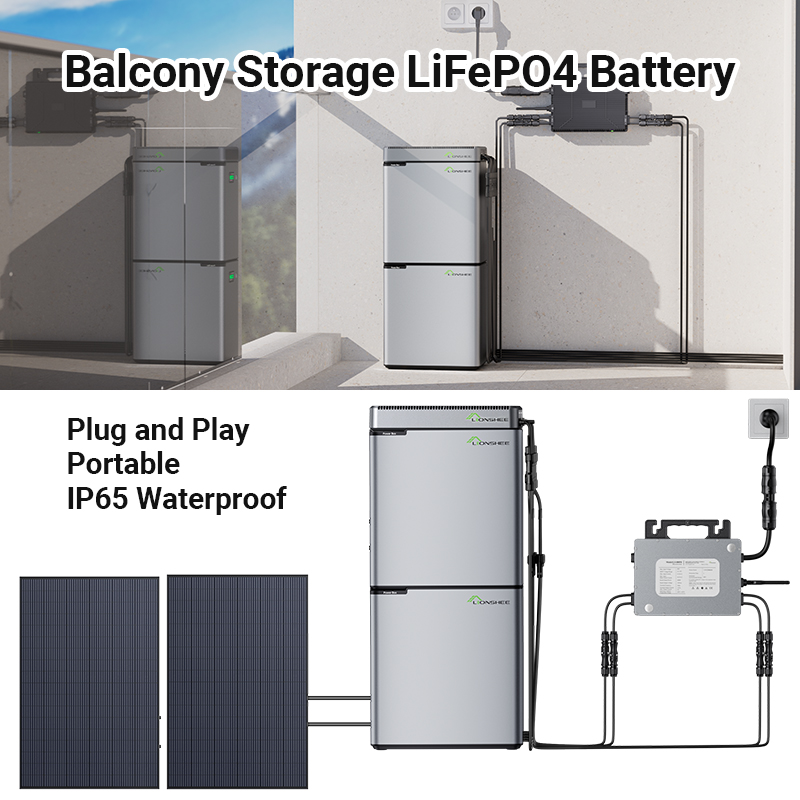

Application scene image of a balcony storage setup - not a real customer installation. Solar panels and microinverter are not included with the LS-L2048. |
Shipping from our German and UK warehouses. If our stock is not enough for your quantity, we tell you before the order is confirmed rather than letting the delivery date quietly slip. |
Request a quotation for your projectYou will receive from us: | |
| • | Power Box Datasheet LS-L2048 as PDF |
| • | CE, RoHS and MSDS documents |
| • | Tiered pricing from your target quantity |
| • | Current stock in Germany and the United Kingdom with a shipping date |
Tell us quantity, destination country and whether you need the heating or fire extinguishing option - we reply with price, availability and shipping date.
