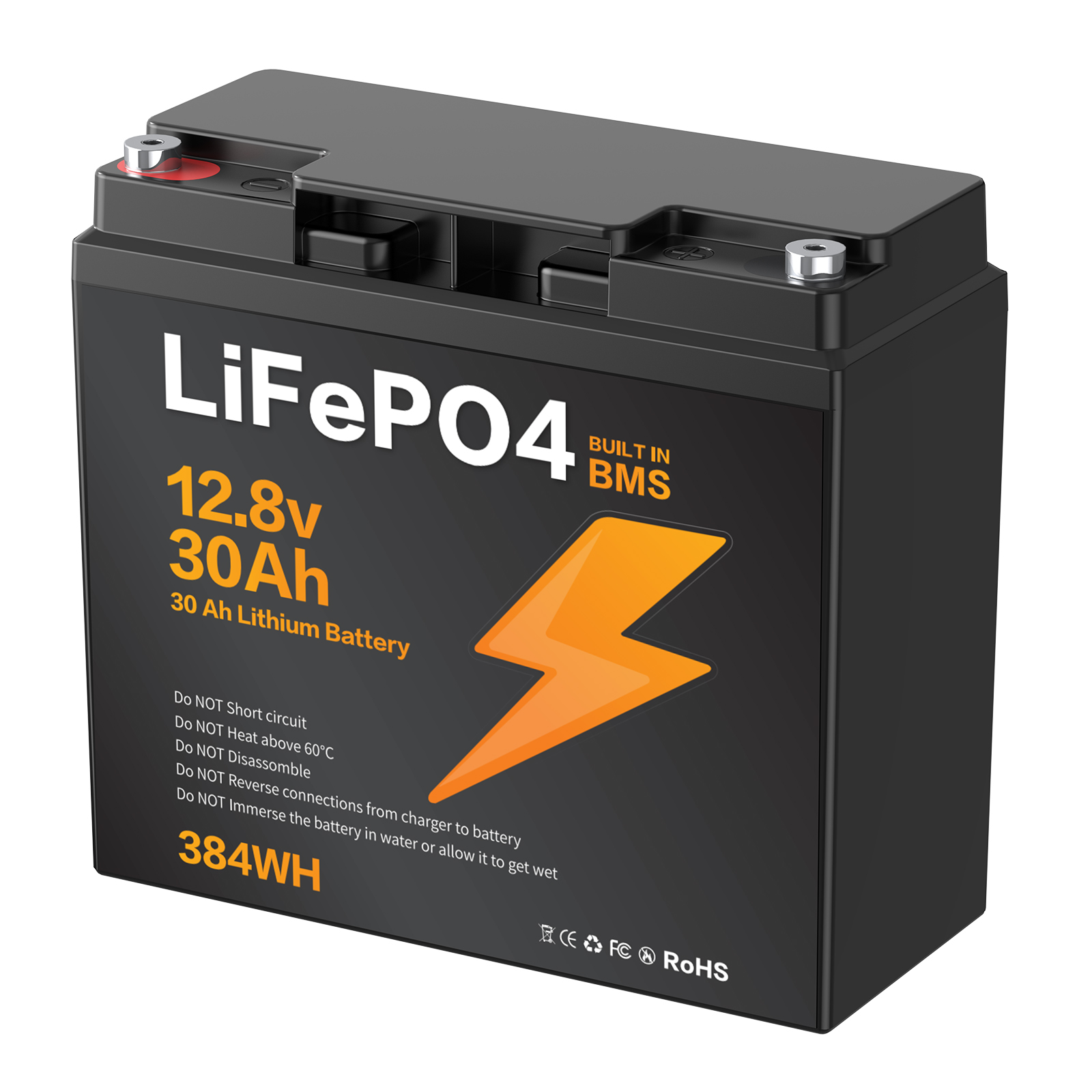

LIONSHEE BZ0037-LFPTS-30A 12.8V 30Ah 384Wh IP67 LiFePO4 Lithium Battery

384Wh from a 3.2kg Battery

12.8V and 30Ah give 384Wh of energy from a case measuring 181 x 77 x 170 mm. At 3.2kg the battery reaches an energy density of 123Wh/kg, while a comparable lead-acid block of the same capacity weighs around 6.5kg.

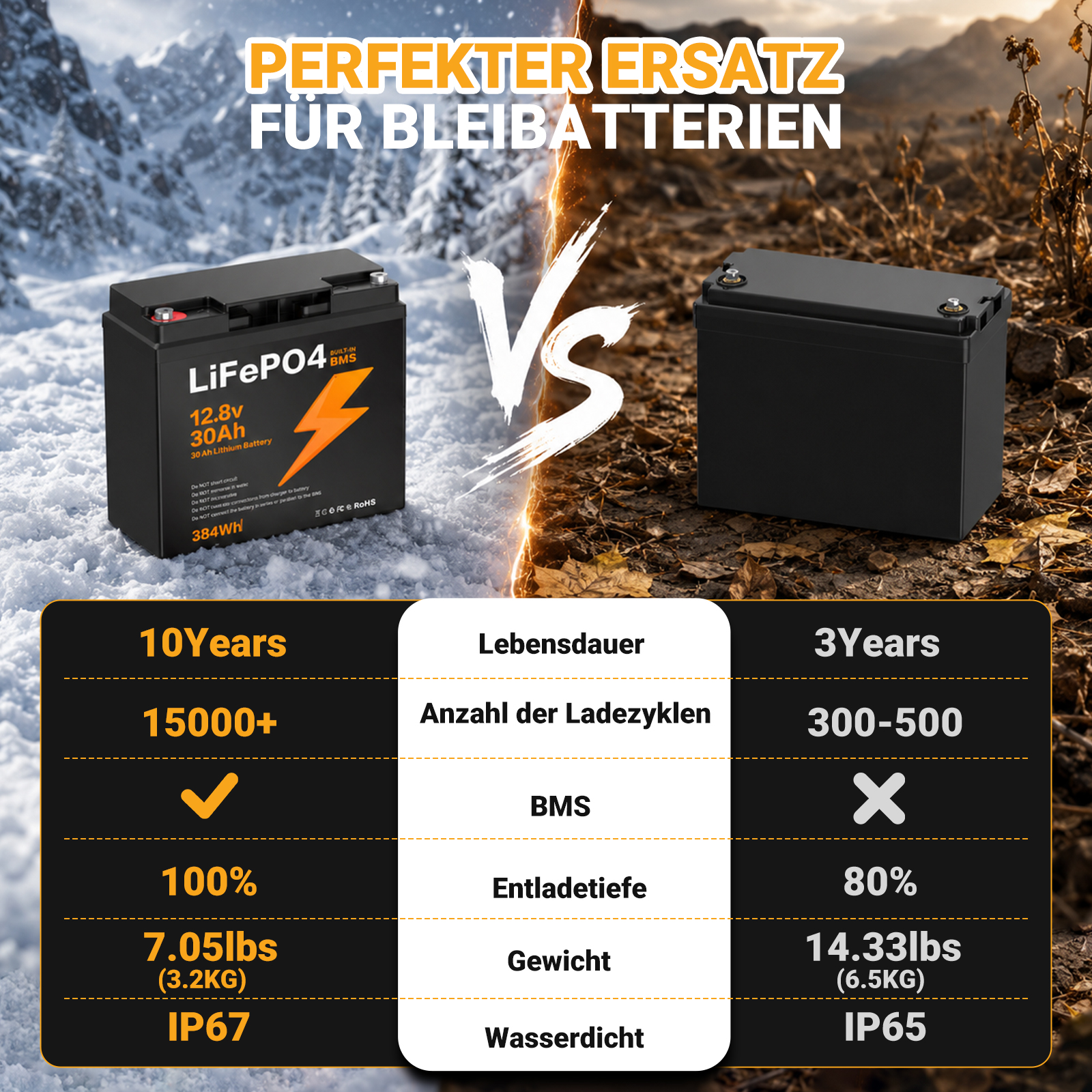

15000 Cycles and Up to 10 Years of Service

The Grade A LiFePO4 cells are rated for more than 15000 charge cycles and a service life of up to 10 years. A comparable lead-acid battery reaches 300-500 cycles and around 3 years.

100% Depth of Discharge

The full 384Wh stays usable because the battery supports 100% depth of discharge. A lead-acid battery of the same nominal capacity is normally limited to 80%, which leaves part of the rated energy unavailable.

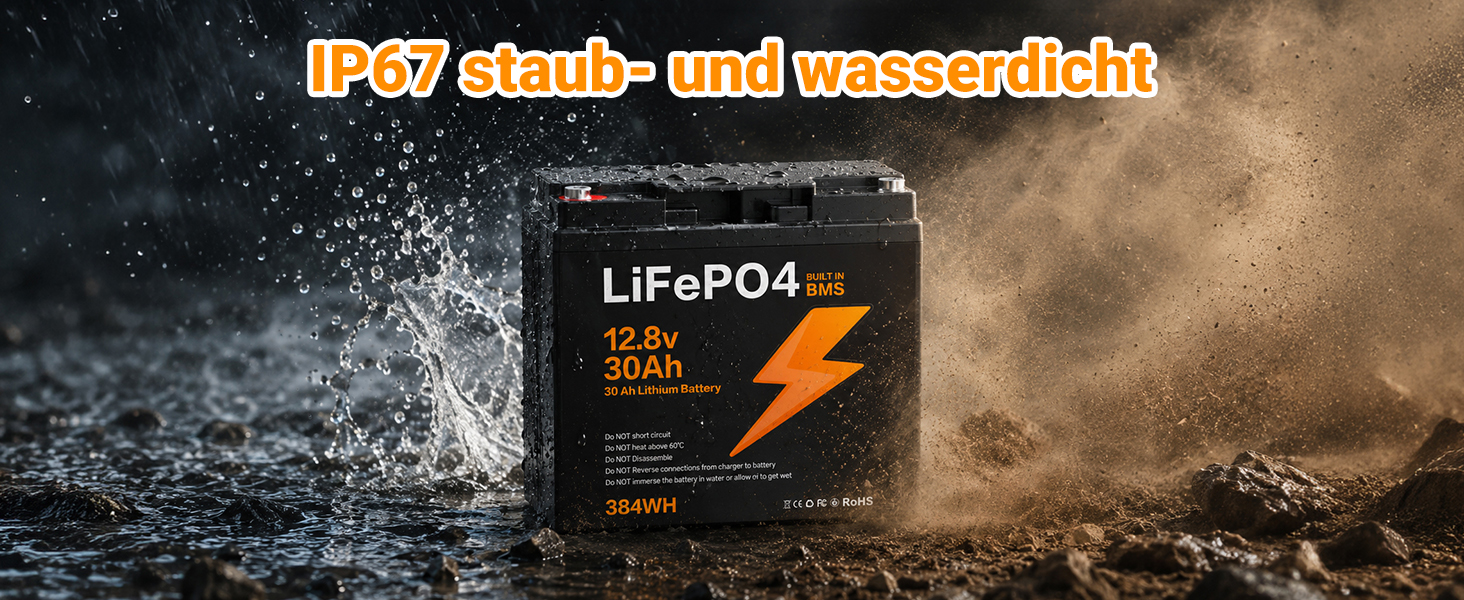

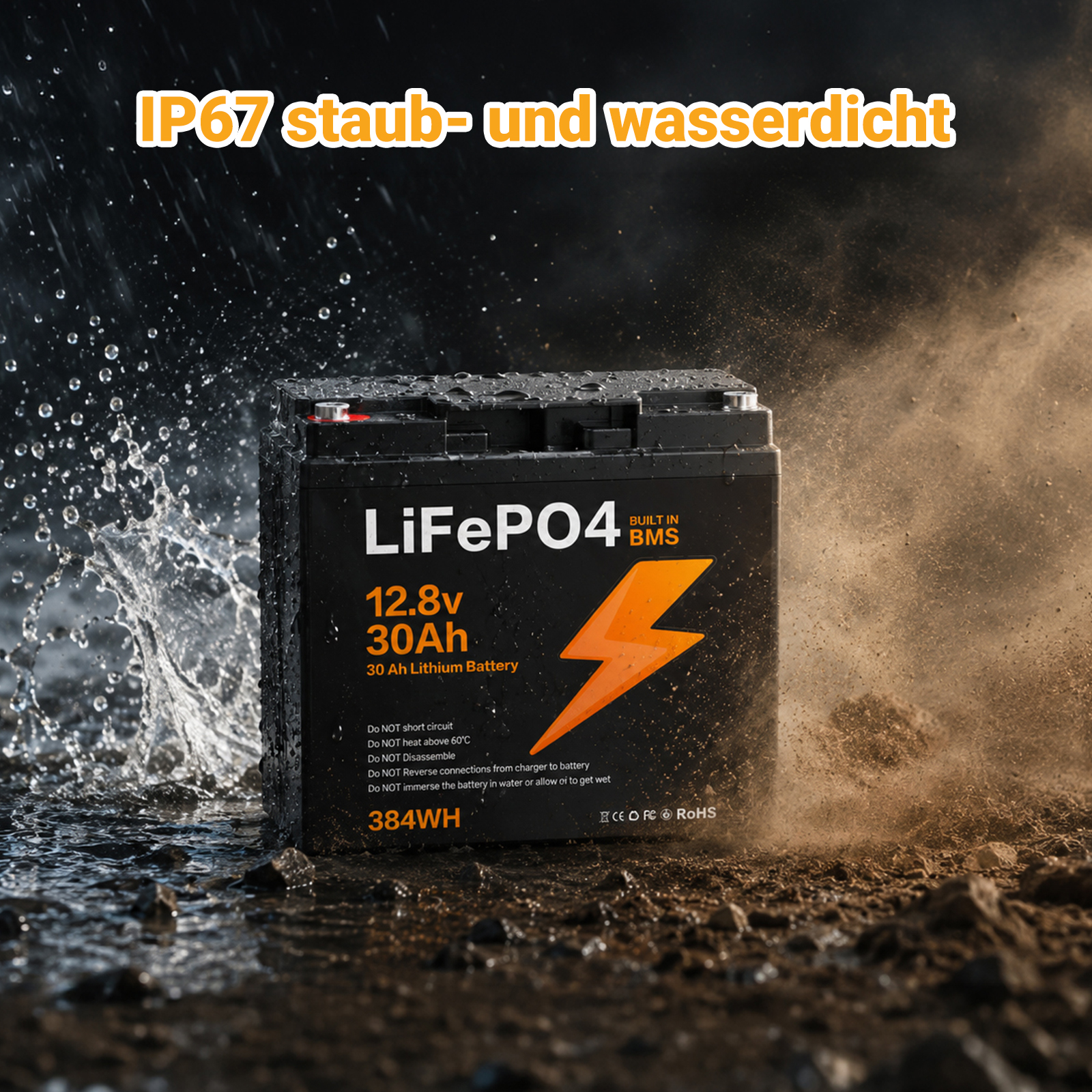

IP67 Waterproof and Dustproof

The sealed case is rated IP67 against rain, splash water and dust, compared with IP65 for a typical lead-acid block. It stays reliable outdoors, on deck and in camping and off-grid installations.

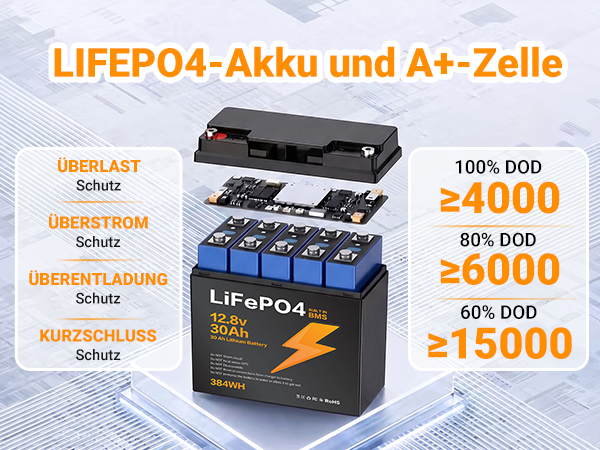

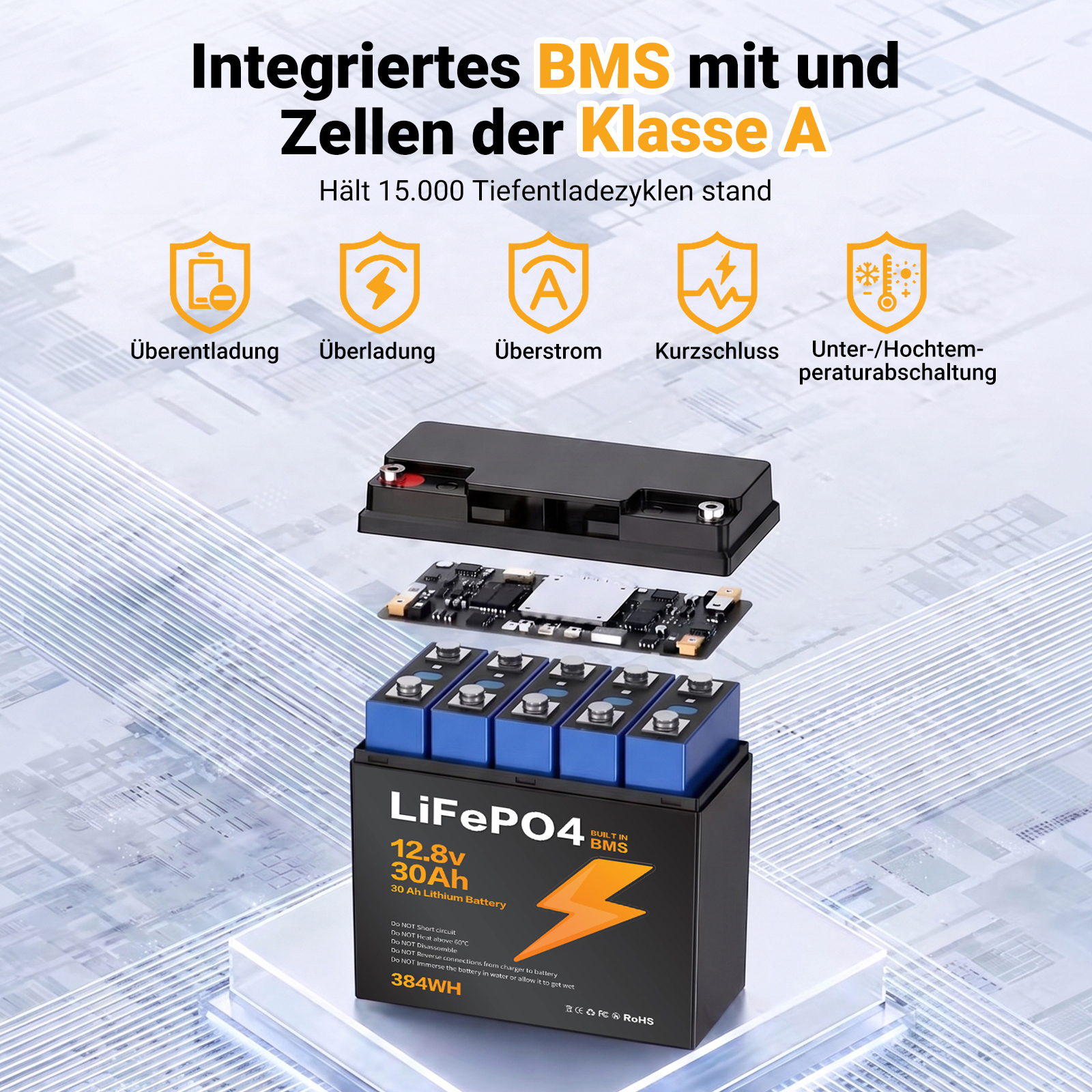

Grade A Cells with Integrated Smart BMS

Grade A LiFePO4 cells are arranged in a 4S2P layout. The built-in battery management system provides over-charge, over-discharge, over-current, short-circuit and high/low temperature cut-off protection, and balances the cells during every charge.

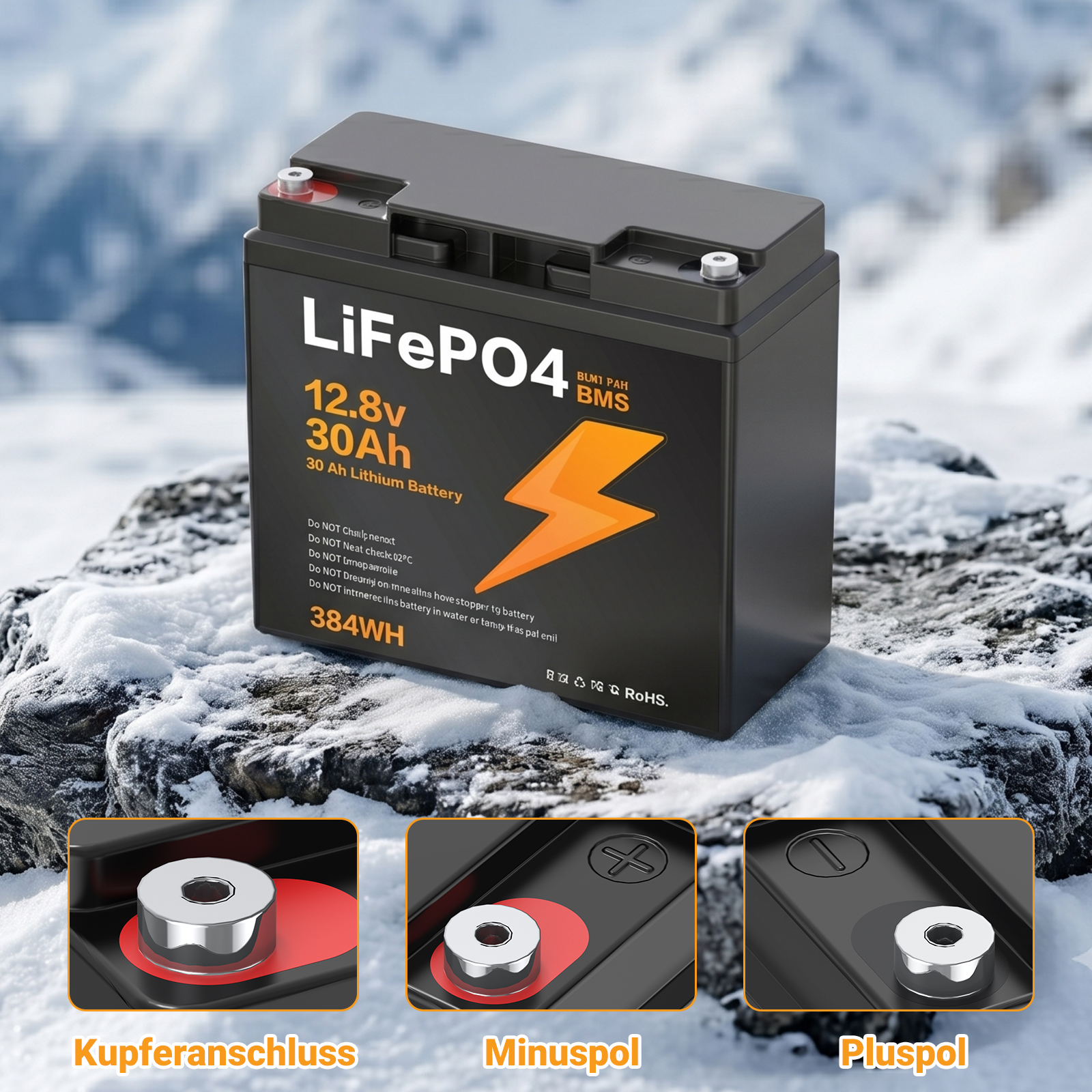

Copper Terminals and 4P4S Expansion

Copper terminals keep contact resistance low and resist corrosion. Up to 16 units can be wired in a 4P4S configuration, which lets the system grow with the solar array or the vehicle without replacing the existing batteries.

Model

BZ0037-LFPTS-30A

Nominal voltage

12.8 V

Rated capacity

30 Ah

Energy

384 Wh

Cell chemistry

LiFePO4 (lithium iron phosphate)

Cell configuration

4S2P, Grade A cells

Energy density

123 Wh/kg

Cycle life

15000+ cycles

Service life

Up to 10 years

Depth of discharge

100%

Protection rating

IP67

Dimensions (L x W x H)

181 x 77 x 170 mm

Net weight

3.2 kg (7.05 lbs)

Battery management

Built-in BMS

BMS protections

Over-charge, over-discharge, over-current, short-circuit, high/low temperature cut-off

Max. expansion

16 batteries, 4P4S

Terminals

Copper terminals

Housing markings

CE, FCC, RoHS

•

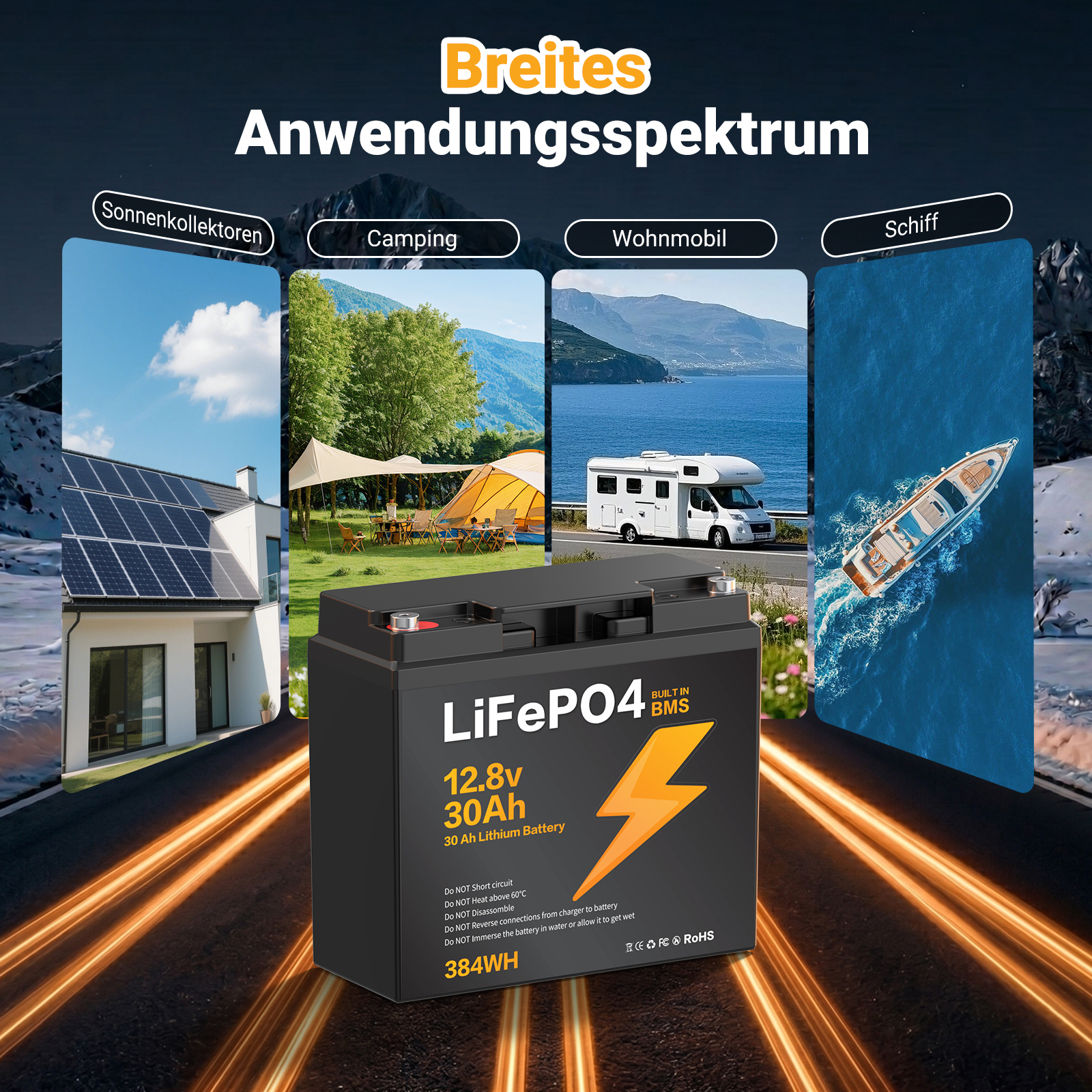

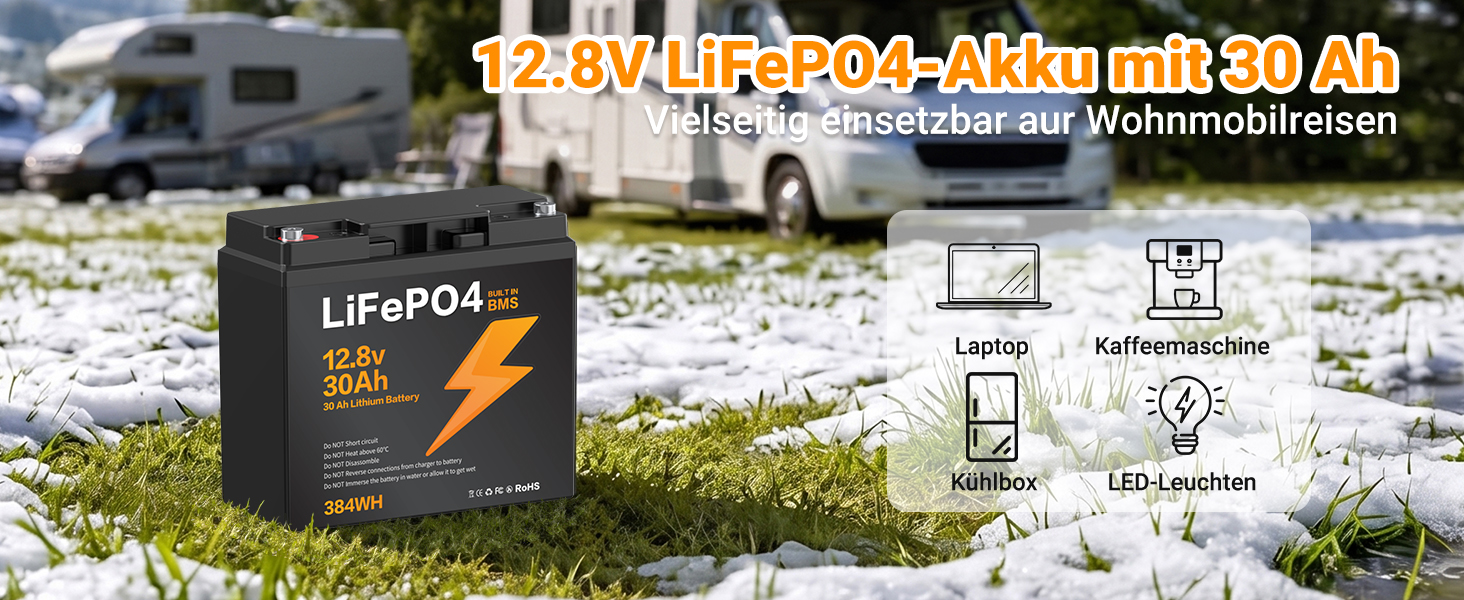

Camping, tents and outdoor power supply

•

Motorhomes, campervans and RVs as an accessory battery

•

Boats, yachts and marine electronics

•

Home and garden solar storage systems

•

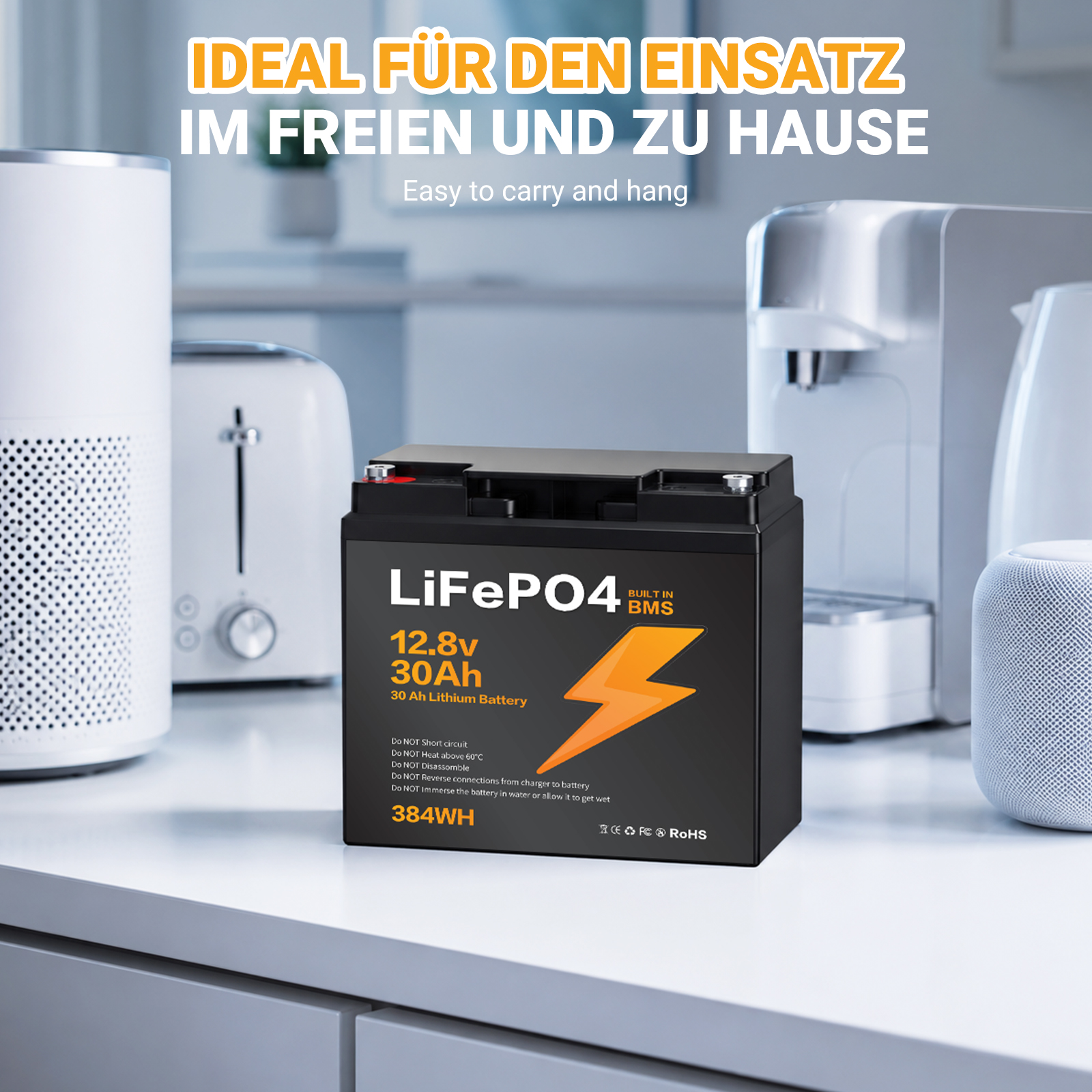

Indoor backup power for small appliances

•

48V banks built from up to 16 batteries in 4P4S

Shipped from our warehouse in Germany for fast EU delivery.

MOQ

 1

Lead time

 3-5 Working Days
