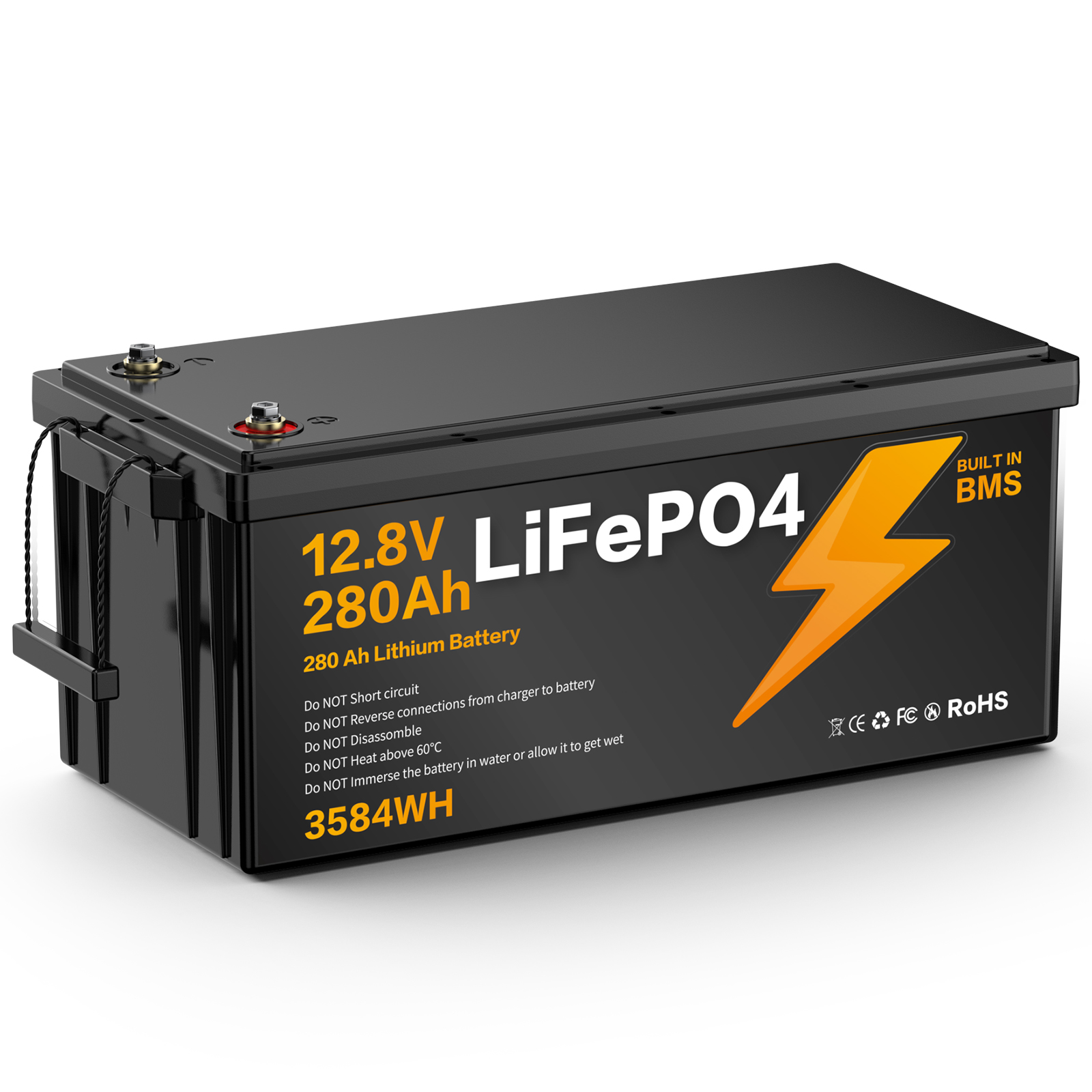

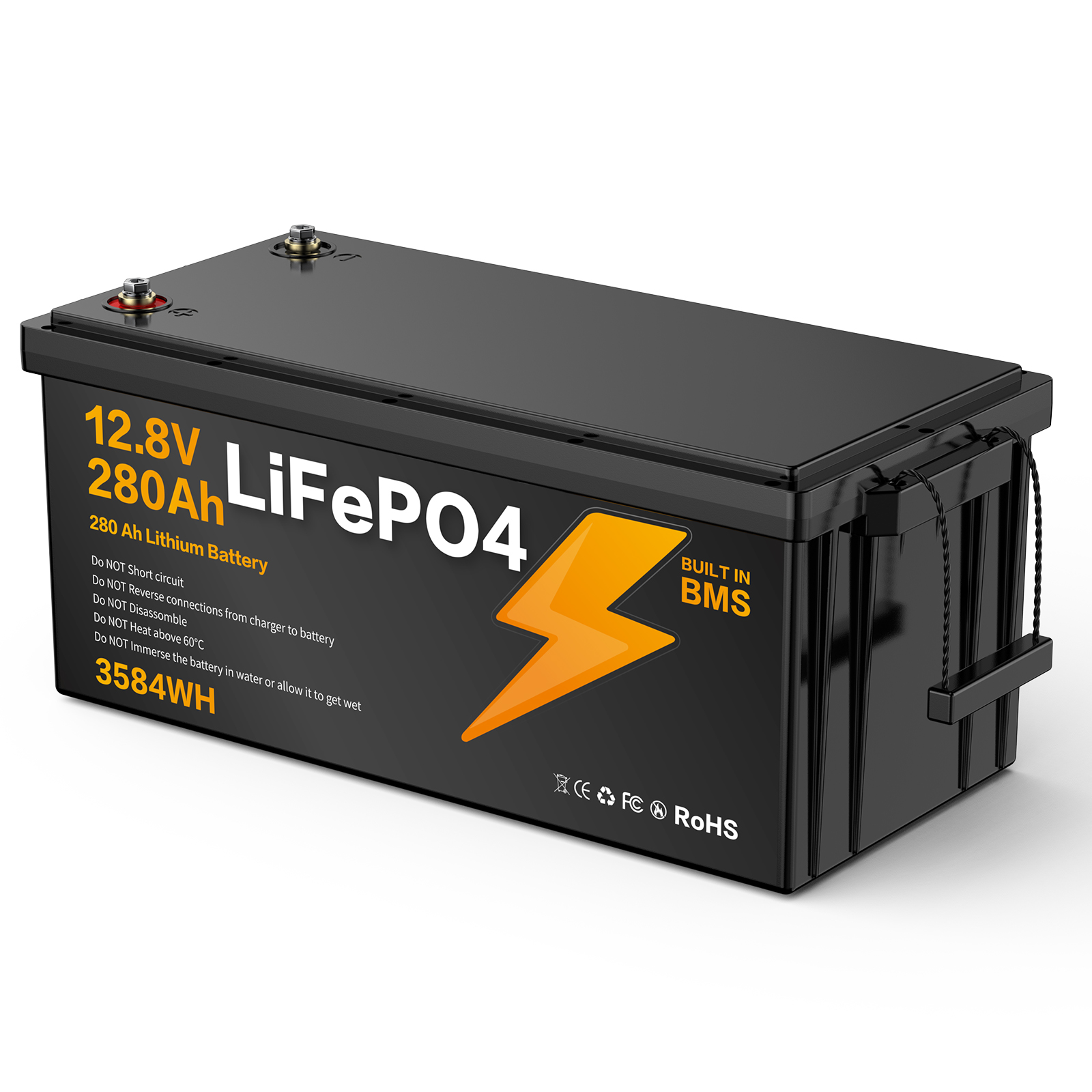

The LIONSHEE BZ0003-LFP-280A is a 12.8V 280Ah lithium iron phosphate (LiFePO4) battery with 3584Wh of stored energy. It is built as a direct drop-in upgrade for a 12V lead-acid battery in motorhomes, boats, solar installations and off-grid systems, in the same familiar block format with bolt-type screw terminals and a side carry handle. Up to 16 units can be combined in a 4S4P configuration for larger 48V storage banks.
12.8V and 280Ah give 3584Wh of energy from a single battery. With 100% depth of discharge, the full capacity stays available, while a lead-acid battery of the same nominal size is normally limited to 80%.

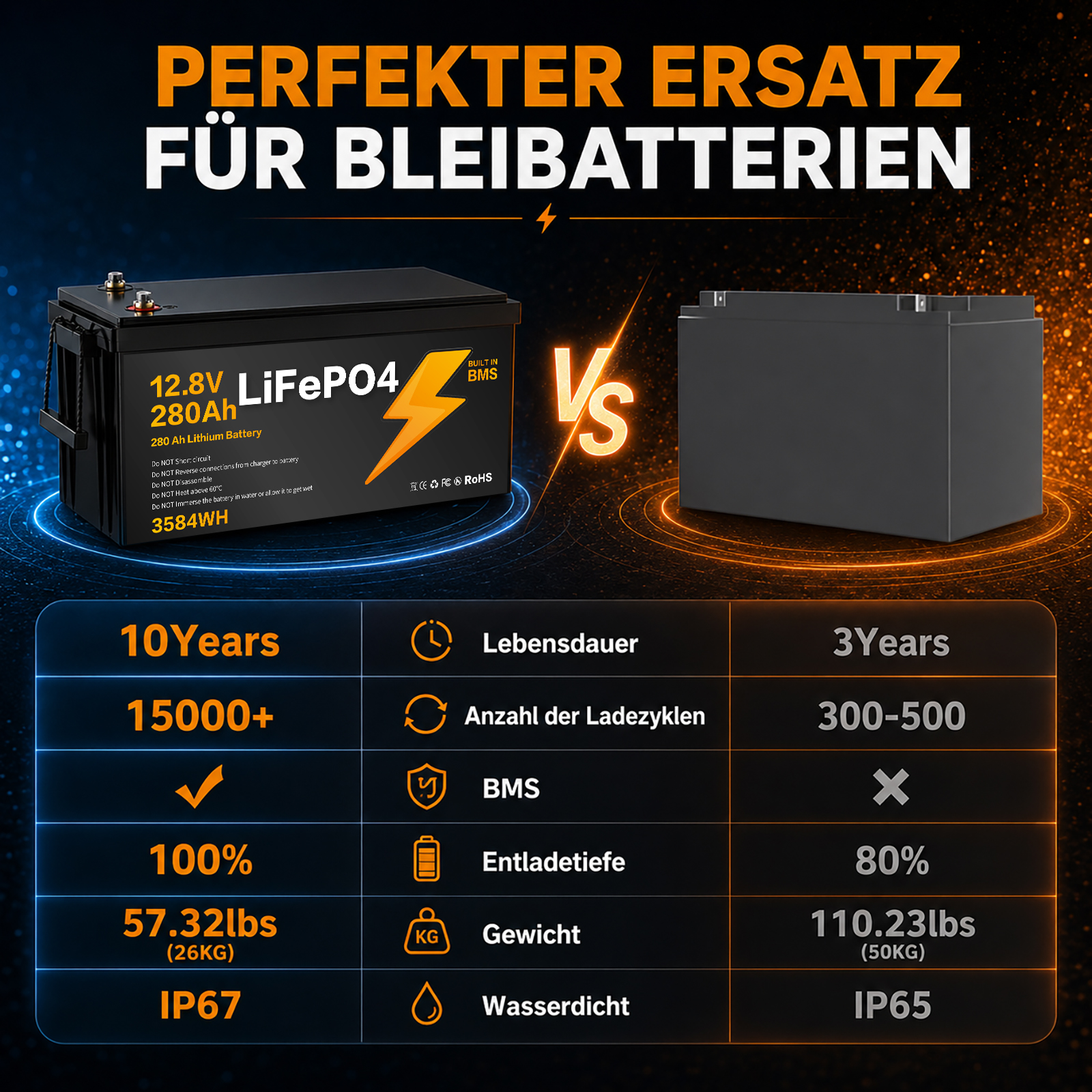

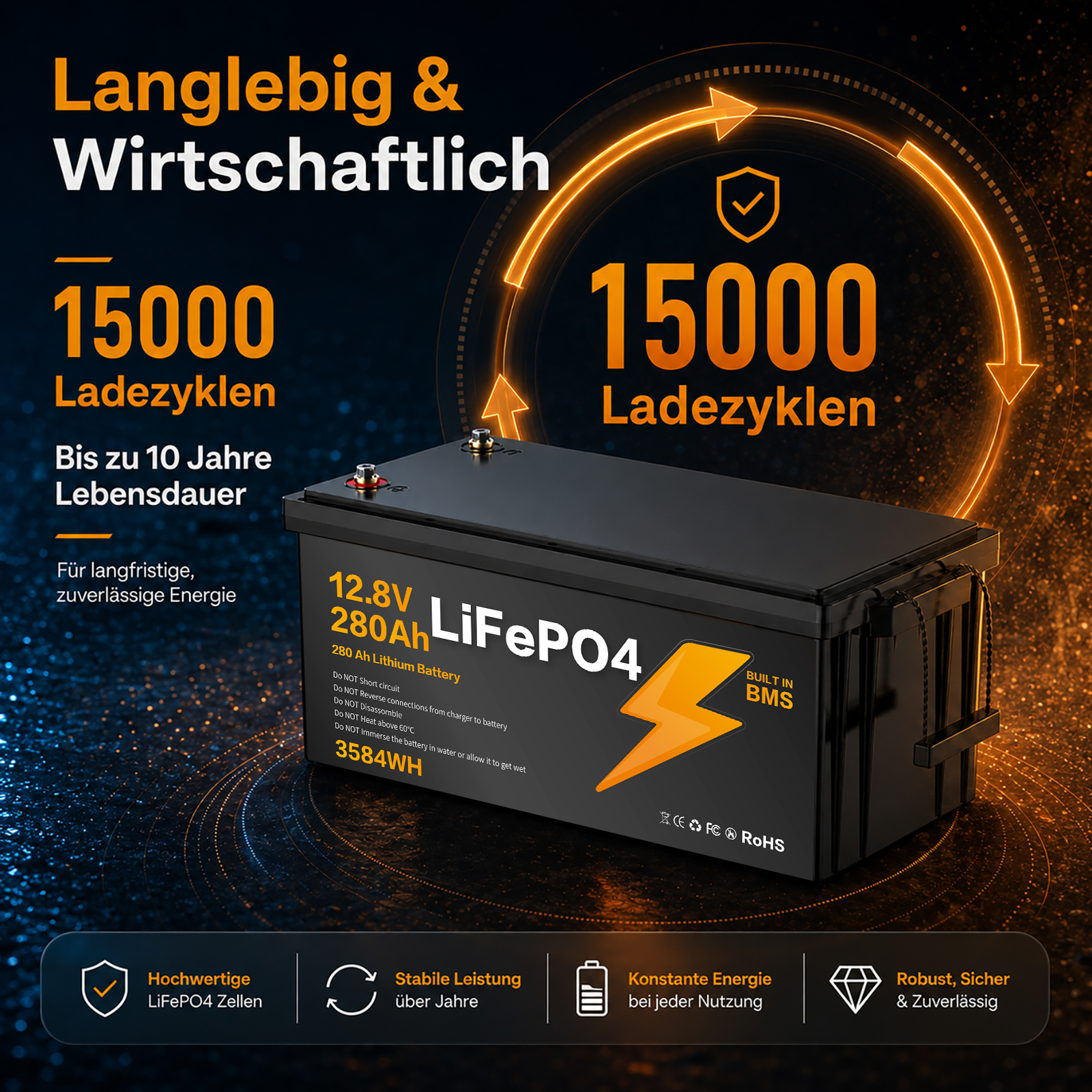

The LiFePO4 cells are rated for more than 15000 charge cycles and a service life of up to 10 years. A comparable lead-acid battery reaches 300-500 cycles and around 3 years.

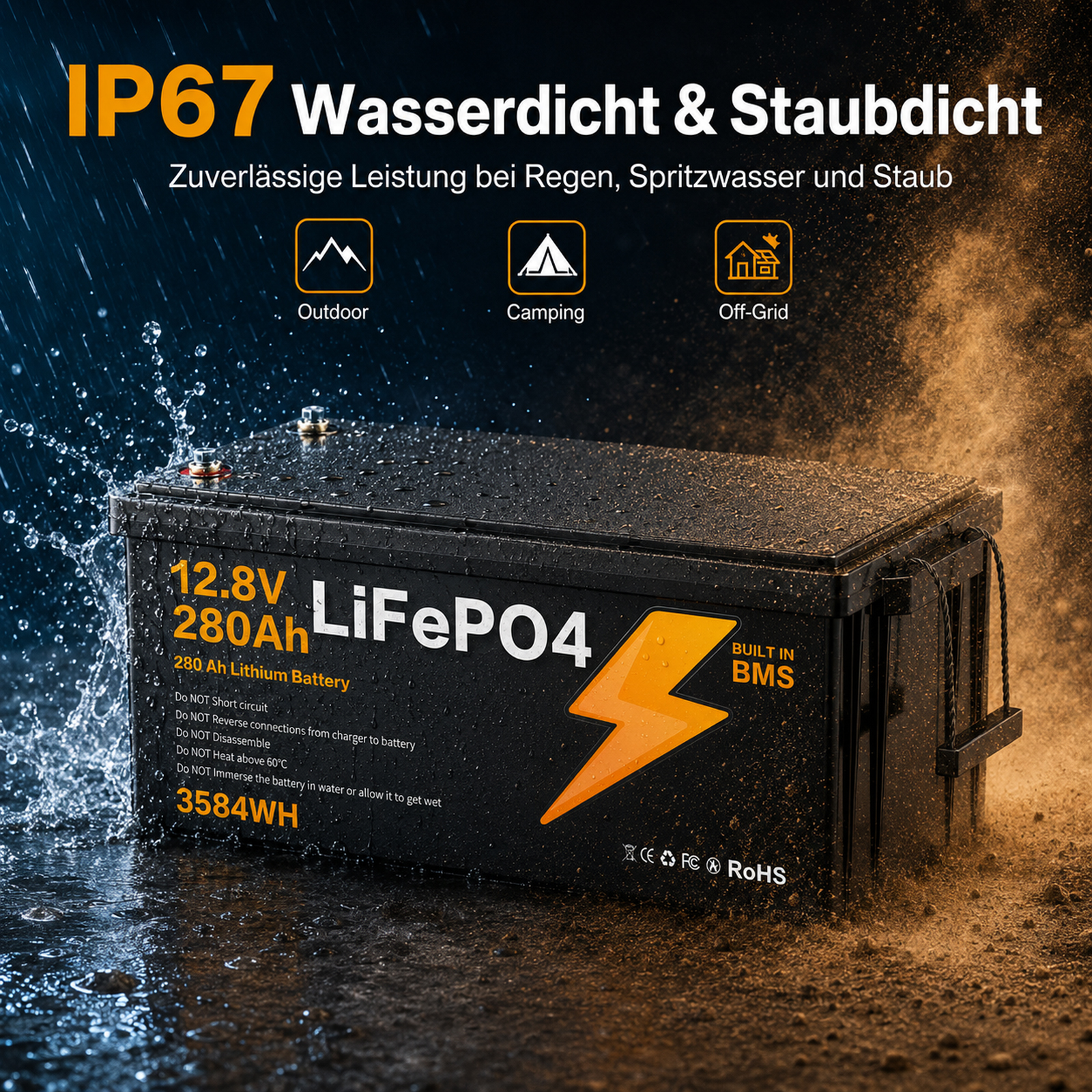

The sealed housing is rated IP67 against rain, splash water and dust, which keeps the battery usable in outdoor, camping and off-grid installations.

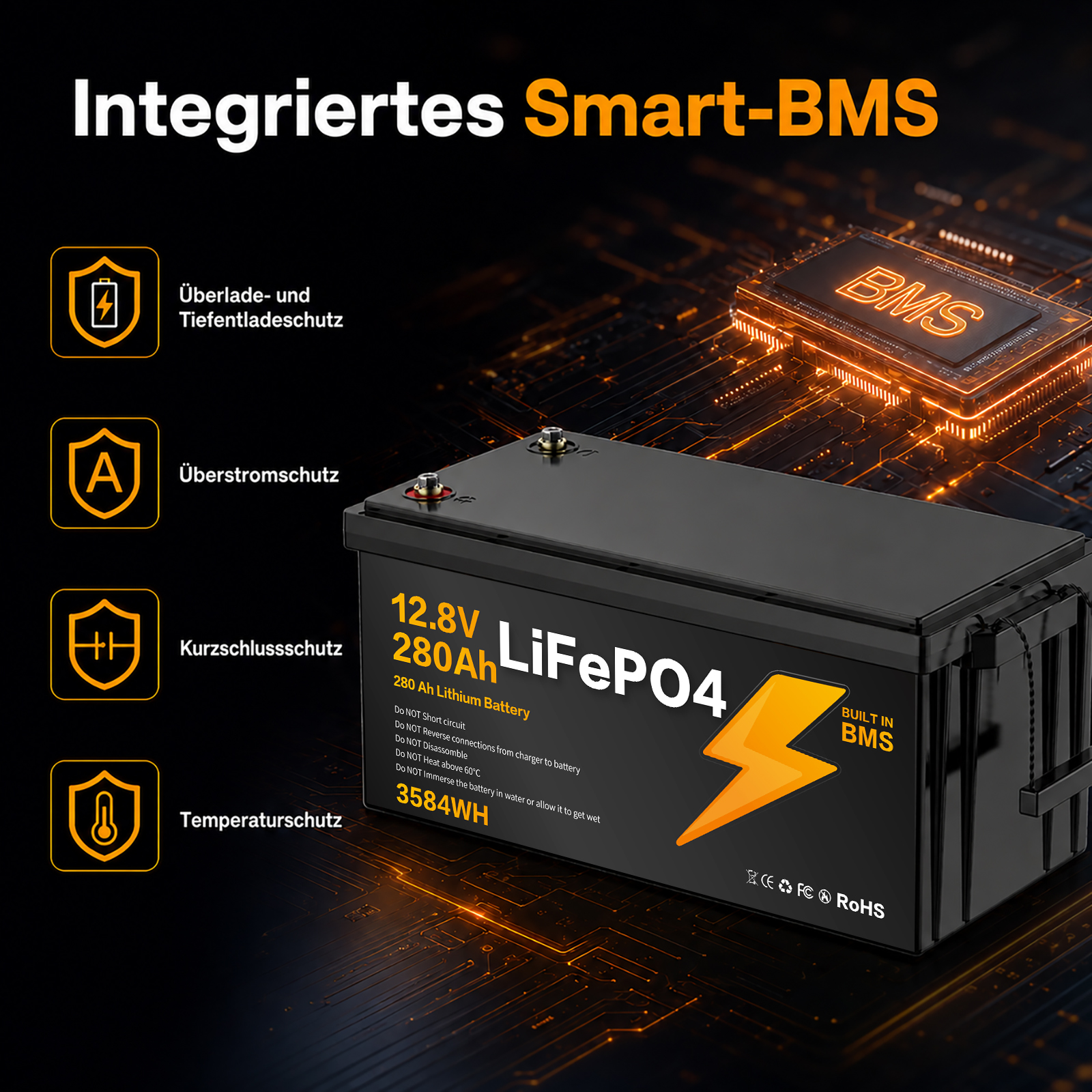

The built-in battery management system provides over-charge, over-discharge, over-current, short-circuit and temperature protection, and balances the cells during every charge.

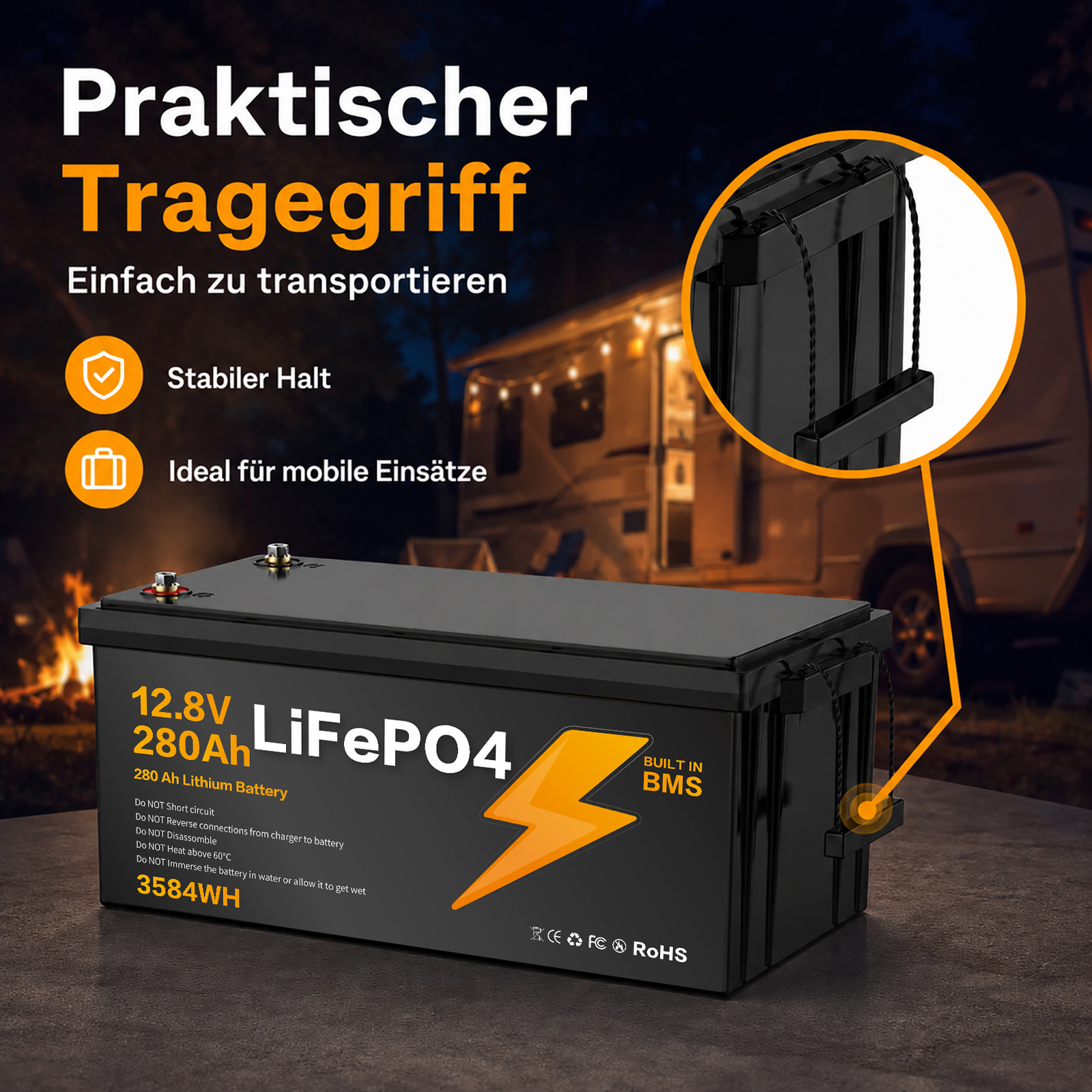

At 26kg (57.32 lbs) the battery weighs roughly half of a comparable 50kg lead-acid battery, and the side carry handle makes installation and removal a one-person job.
Up to 16 units can be wired in a 4S4P configuration, which allows the system to grow with the solar array or the vehicle without replacing the existing batteries.
Parameter | Value |
|---|---|
Model | BZ0003-LFP-280A |
Nominal voltage | 12.8 V |
Rated capacity | 280 Ah |
Energy | 3584 Wh |
Cell chemistry | LiFePO4 (lithium iron phosphate) |
Cycle life | 15000+ cycles |
Service life | Up to 10 years |
Depth of discharge | 100% |
Protection rating | IP67 |

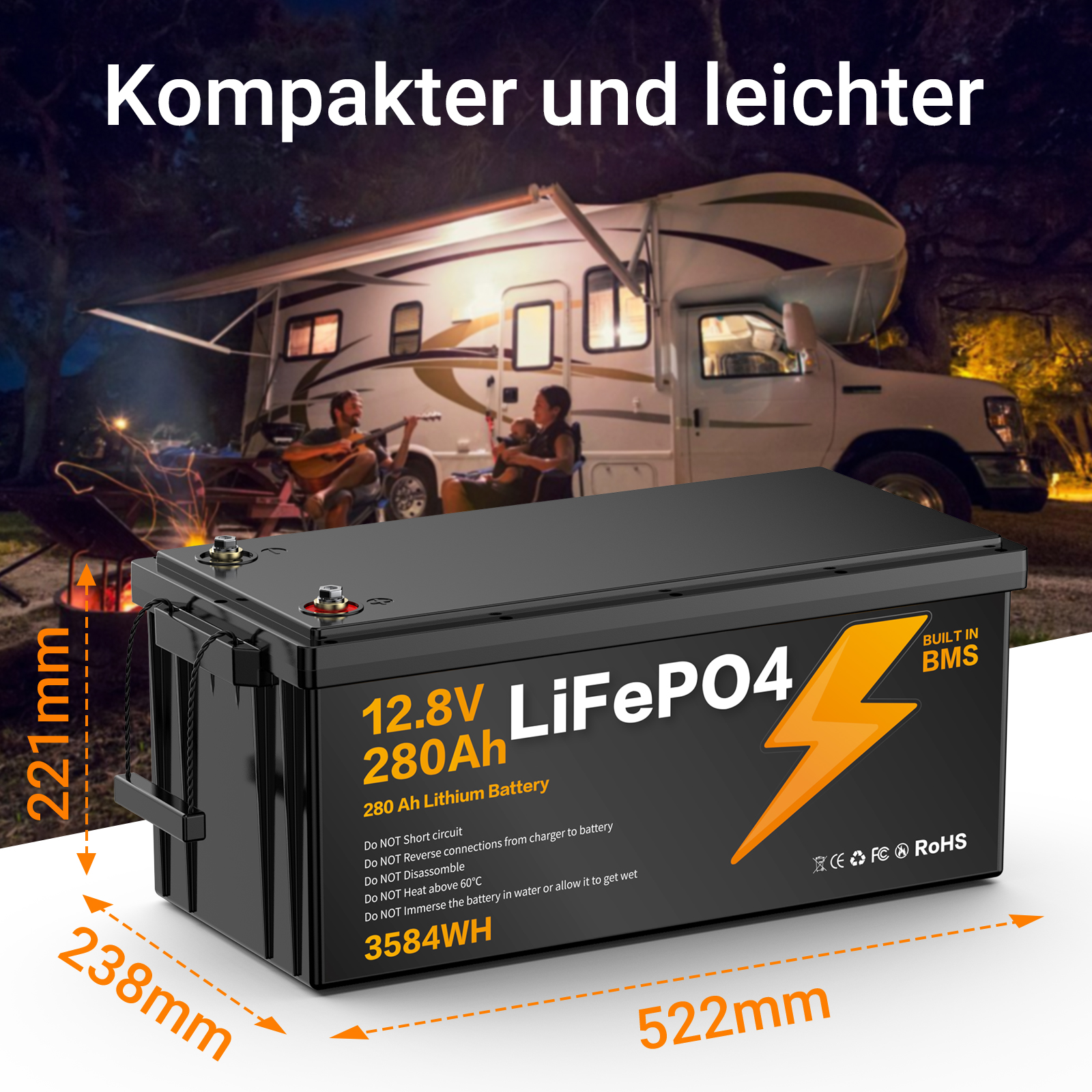

Dimensions (L × W × H) | 522 × 238 × 221 mm |
Net weight | 26 kg (57.32 lbs) |
Battery management | Built-in BMS |
BMS protections | Over-charge, over-discharge, over-current, short-circuit, temperature |
Max. expansion | 16 batteries, 4S4P |
Terminals | Bolt-type screw terminals |
Handle | Side carry handle |
Housing markings | CE, FCC, RoHS |

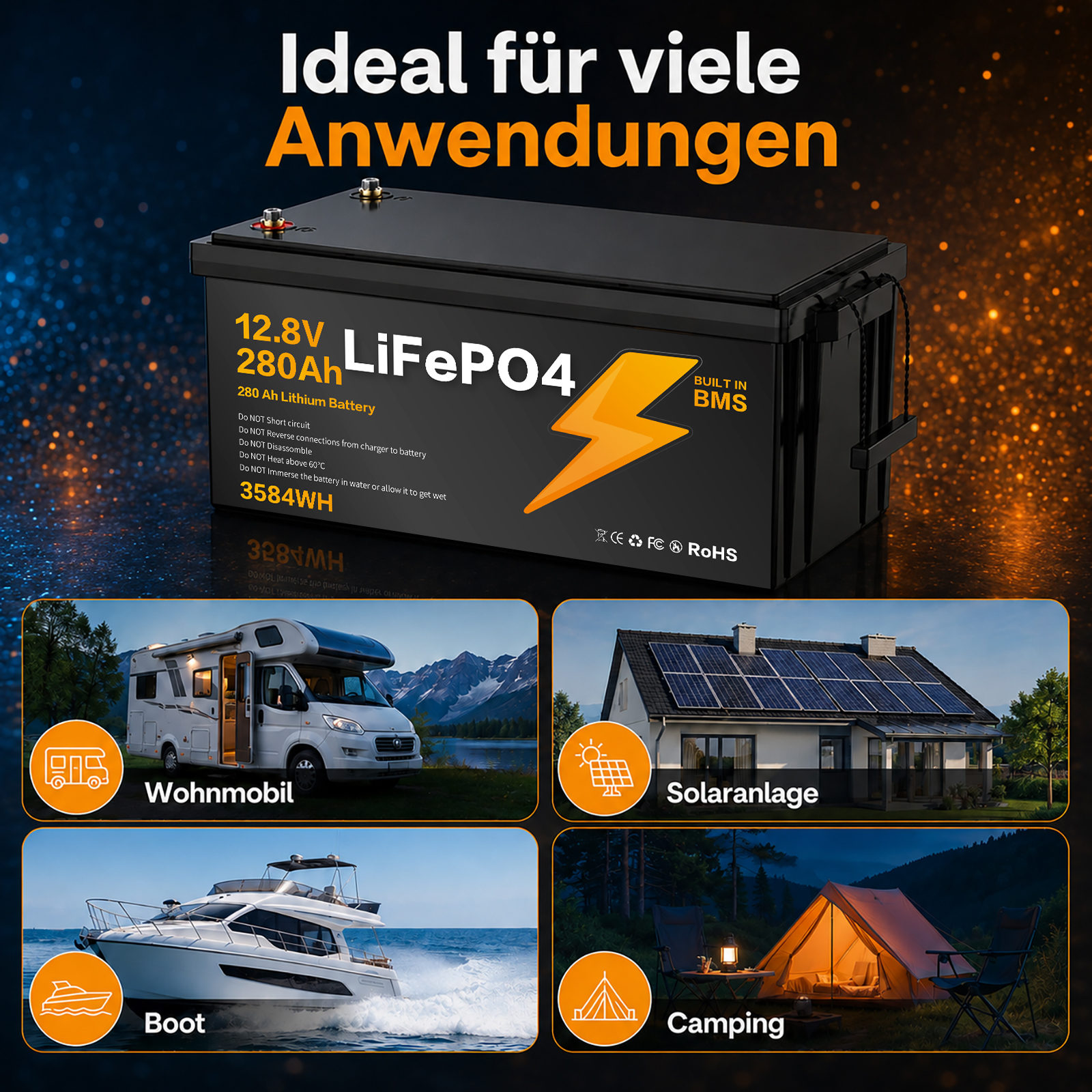

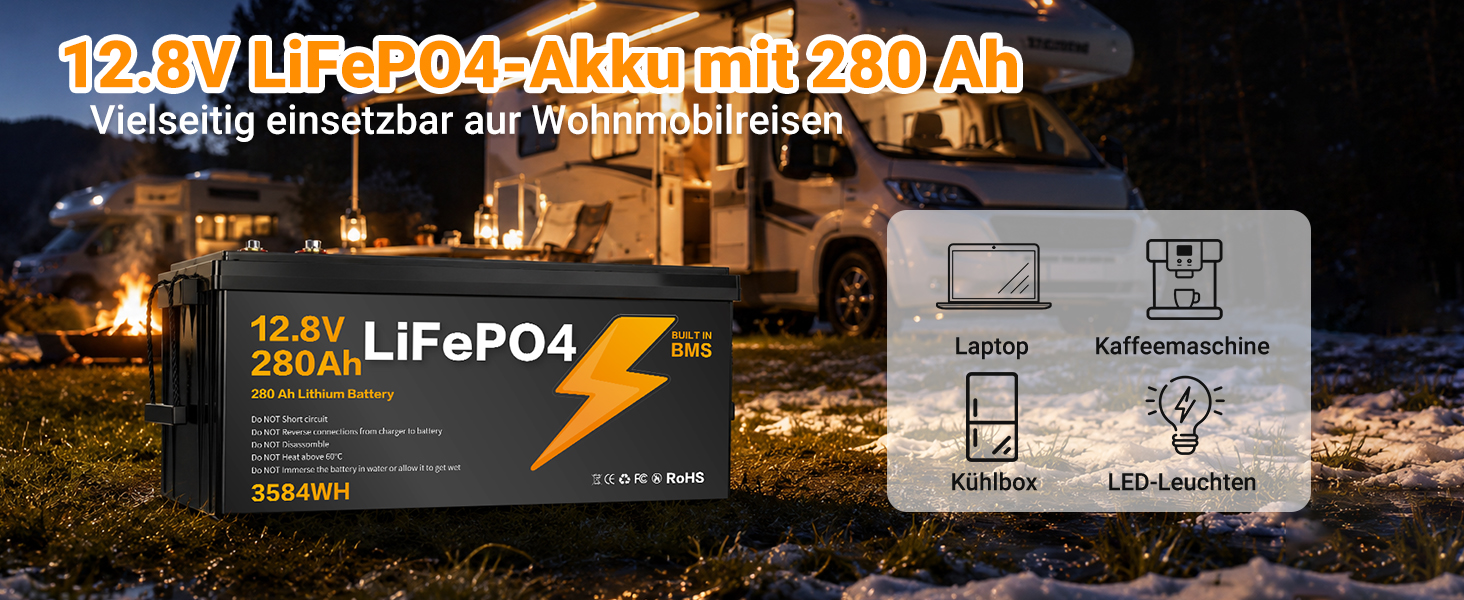

Motorhomes, campervans and RVs as a house battery | |
Boats, yachts and marine electronics | |
Home and garden solar storage systems | |
Camping and outdoor power supply | |
Off-grid cabins and backup power | |
48V banks built from up to 16 batteries in 4S4P |
Shipped from our warehouse in Germany for fast EU delivery.
Packaging method | Individual Paper Box With Foam |
Customization options | Not Supported |
MOQ | 1pcs |
Lead time | 3-7 Workding Days |
