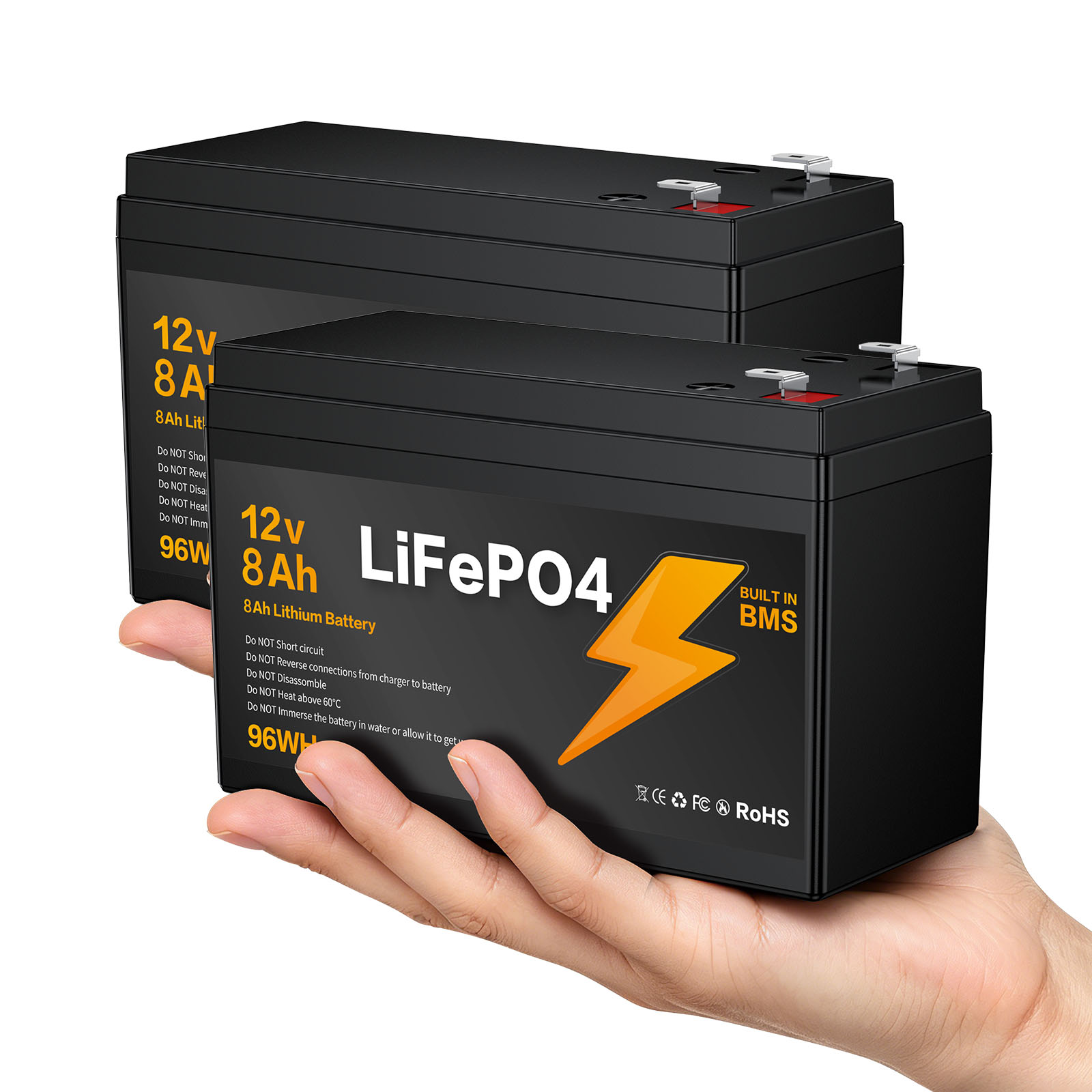

LIONSHEE 12V 8Ah LiFePO4 Battery with Built-in BMS, 96Wh and Up to 15,000 Cycles – BZ0003-LFP-7.5A

Product Description

The LIONSHEE BZ0003-LFP-7.5A is a compact and long-lasting 12V 8Ah LiFePO4 battery designed for deep-cycle energy storage and mobile 12V applications. With 96Wh of energy, high-quality A+ grade LiFePO4 cells and an integrated battery management system, it offers a stable, safe and low-maintenance alternative to conventional lead-acid batteries.

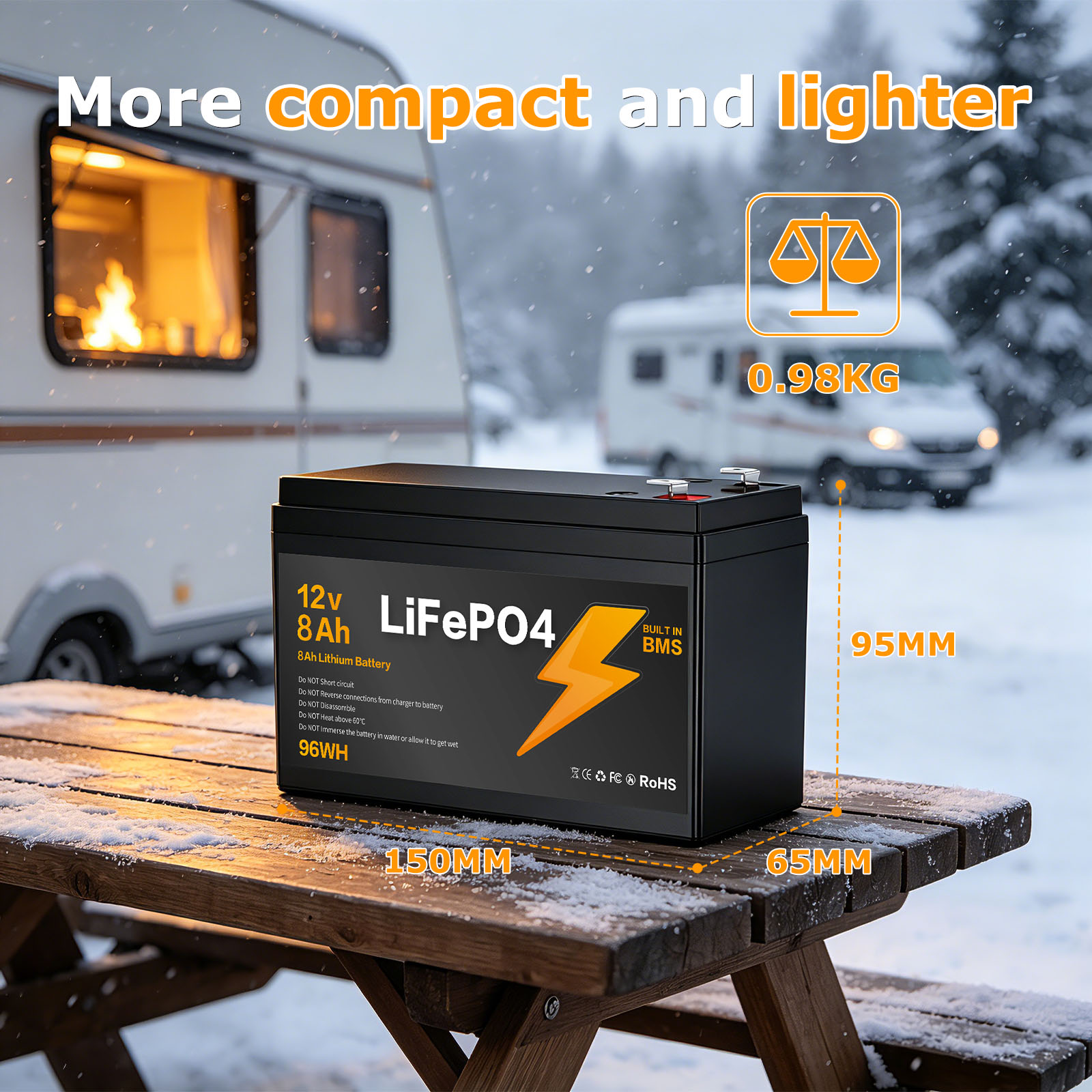

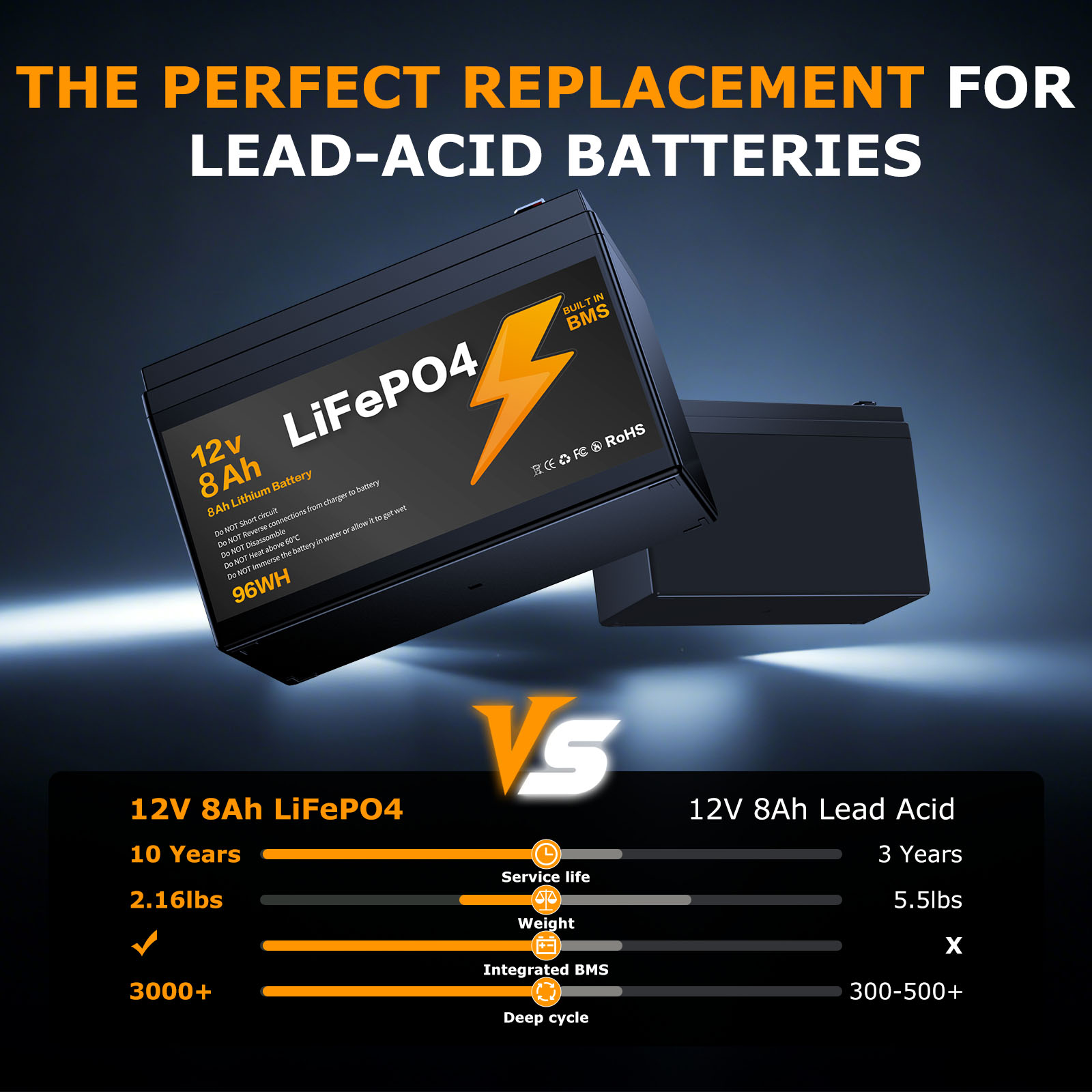

Compared with a typical 12V 8Ah lead-acid battery, this LiFePO4 battery is significantly lighter. Weighing only approximately 0.95kg, it is easier to transport, install and integrate into mobile power systems. LiFePO4 technology also provides a much longer cycle life and better deep-cycle performance than conventional sealed lead-acid batteries.

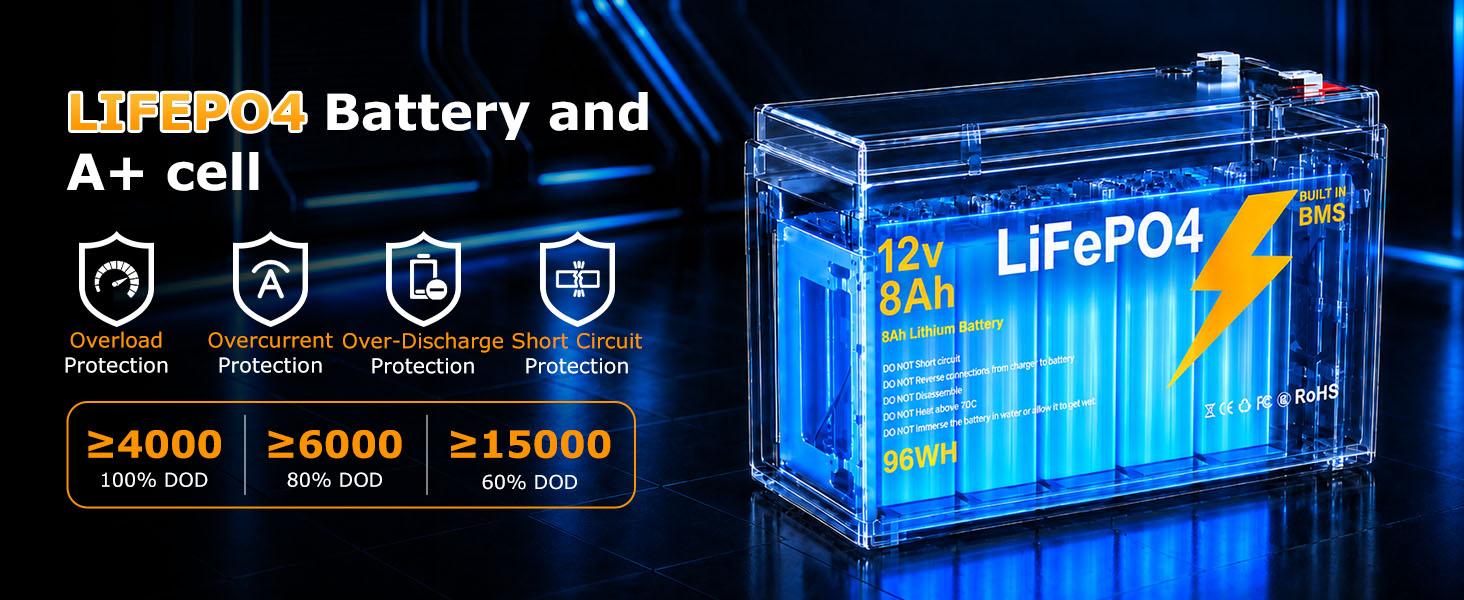

Depending on the depth of discharge, the battery delivers at least 4,000 cycles at 100% DOD, at least 6,000 cycles at 80% DOD and up to 15,000 cycles at 60% DOD. It is therefore suitable for applications requiring a dependable energy source that can be charged and discharged regularly.

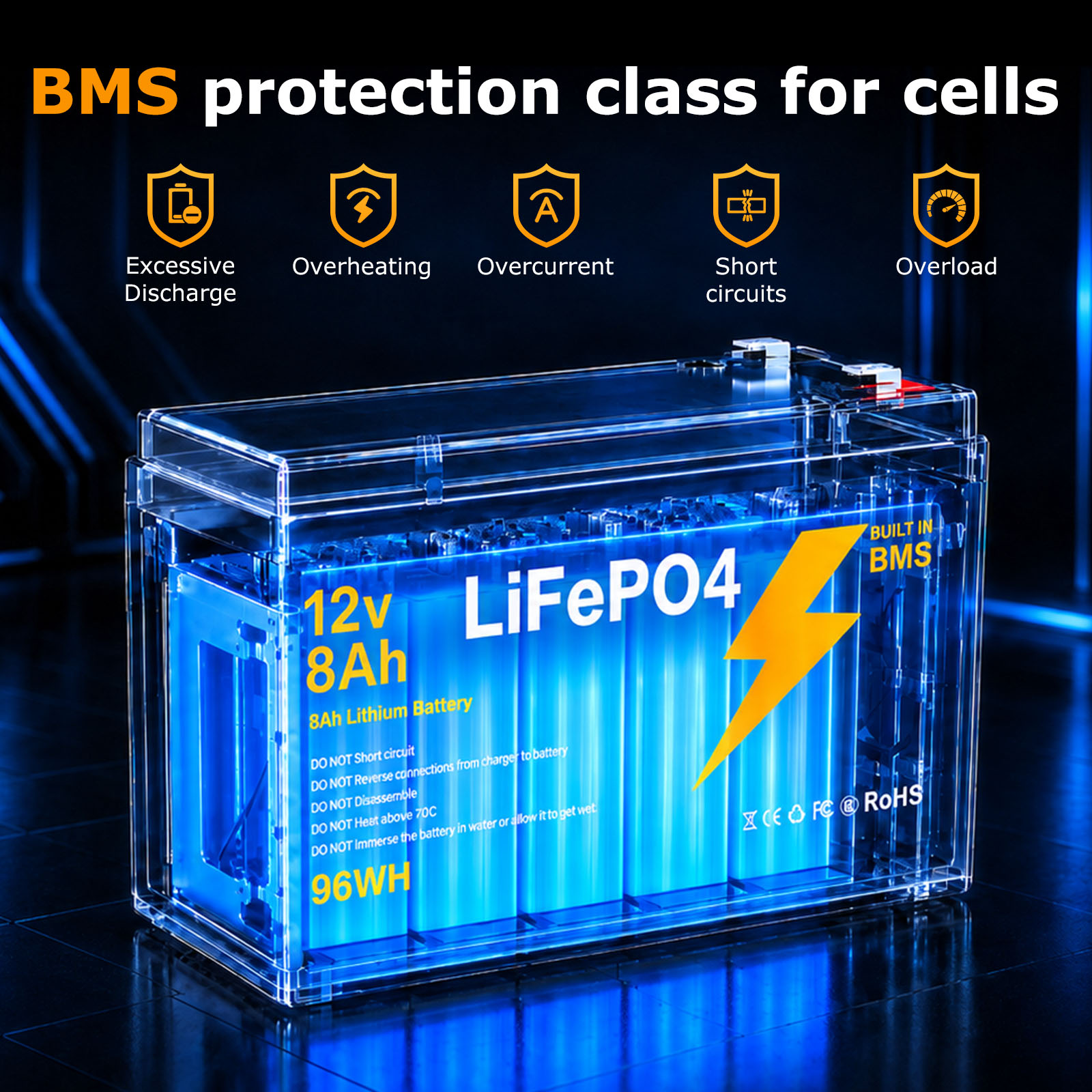

The integrated BMS continuously monitors battery operation and protects the cells against overcharge or overload, overcurrent, over-discharge, short circuit and overheating. These protection functions improve operational safety and help maintain stable performance throughout the battery’s service life.

For applications requiring higher voltage or capacity, up to 16 identical batteries can be combined in a 4P4S configuration. Batteries used in one system should be of the same model and condition, with correctly matched charging and system components.

The battery is suitable for solar systems, camping, RVs, boats, fish finders, backup power, LED lighting, small UPS systems and other deep-cycle 12V applications. A suitable inverter is required when powering AC appliances.

Availability from our Germany warehouse provides customers in Germany and other European markets with faster delivery, simpler logistics and shorter project lead times.

Key Advantages

- 12V 8Ah LiFePO4 battery with 96Wh of energy

- High-quality A+ grade LiFePO4 cells

- Up to 15,000 charge and discharge cycles

- Designed for a service life of up to 10 years

- Integrated BMS for dependable battery protection

- Protection against overcharge, overcurrent and over-discharge

- Short-circuit and over-temperature protection

- Lightweight design at only approximately 0.95kg

- Significantly lighter than comparable lead-acid batteries

- Long-lasting replacement for 12V 8Ah lead-acid batteries

- Expandable with up to 16 batteries in a 4P4S configuration

- Suitable for solar, camping, boats, RVs and backup power

- RoHS-compliant design

- Fast shipment from Germany warehouse

Technical Specifications

Model: BZ0003-LFP-7.5A

Battery Chemistry: Lithium Iron Phosphate, LiFePO4

Nominal Voltage: 12V

Nominal Capacity: 8Ah

Nominal Energy: 96Wh

Cell Grade: A+

Battery Management System: Built-in BMS

Weight: Approx. 0.95kg / 2.1lb

Cycle Life at 100% DOD: At Least 4,000 Cycles

Cycle Life at 80% DOD: At Least 6,000 Cycles

Cycle Life at 60% DOD: Up to 15,000 Cycles

Designed Service Life: Up to 10 Years

BMS Protection: Overcharge/Overload, Overcurrent, Over-Discharge, Short Circuit and Over-Temperature

Maximum Expansion: 16 Identical Batteries

System Configuration: Up to 4P4S

Compliance: RoHS

Typical Applications: Solar, Camping, RV, Boat, Fish Finder, UPS, Backup Power and LED Lighting

Warehouse: Germany Warehouse
