In short Stock in Germany and the United Kingdom is what turns the LIONSHEE LS-L1024 from a quotation into a delivery date. The unit is a 1024 Wh stackable LiFePO4 Power Box at 51.2 V nominal, expandable to 6144 Wh with six units in parallel, carrying CE, RoHS and MSDS documentation. We ship from our own European stock, and if that stock does not cover your quantity we say so before the order is confirmed. |
6144 Wh Maximum with 6 units in parallel | 1024 Wh Nominal capacity per unit | IP65 Protection grade | 6000 Charge cycles |
The LS-L1024 stores the solar energy a household produces during the day so it can be used in the evening instead of being fed back at a low tariff. The enclosure measures 320 x 200 x 196 mm and weighs 9.3 kg, small enough to sit under a window or on a balcony floor and light enough for one person to carry with the built-in handle. Cooling is passive: no fan, no running noise. Battery communication runs over CAN and RS-485.

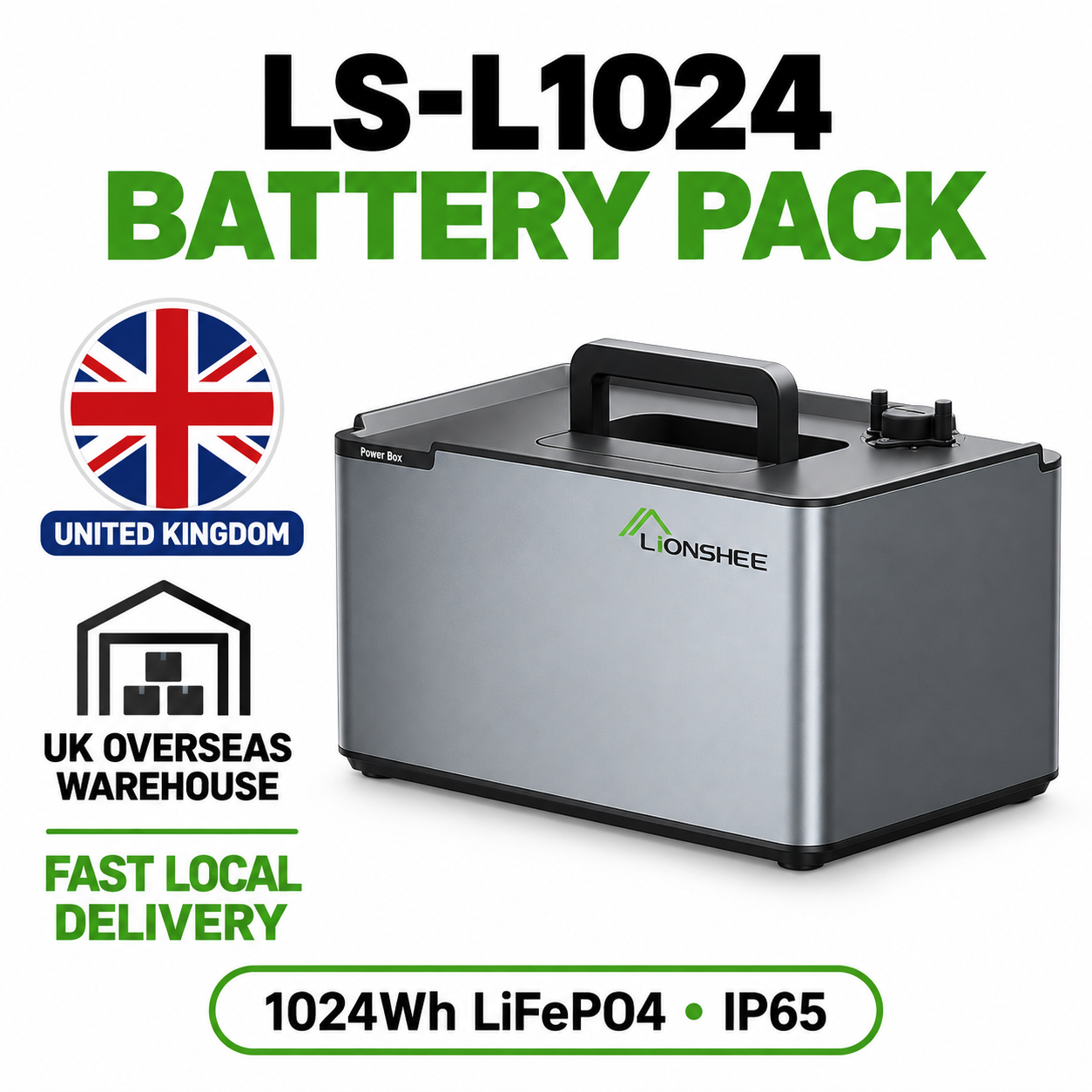

German and UK stock, documents on fileThe battery ships from our warehouses in Germany and the United Kingdom, so delivery is a local leg rather than a sea freight booking. CE, RoHS and MSDS documents are on file and go out with the quotation. Tell us the quantity and destination country and you get price, current stock and a shipping date in the same reply. |
 |

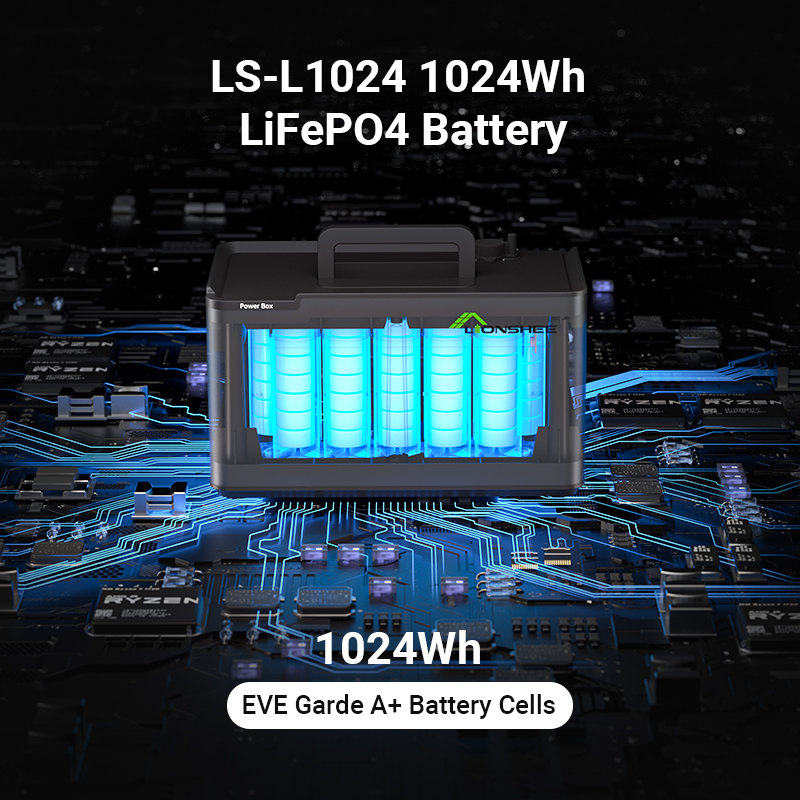

Manufacturer cutaway graphic of the cell pack. A+ grade EVE cells are confirmed by our product department; the binding electrical figures are in the Technical data table. |
1024 Wh from A+ grade LiFePO4 cellsOne Power Box stores 1024 Wh at 51.2 V nominal, with a working voltage range of 40~58.4 V. The A+ grade LiFePO4 chemistry stays stable over a long service life, which is what makes 6000 cycles and a 5-year warranty possible. |
 |

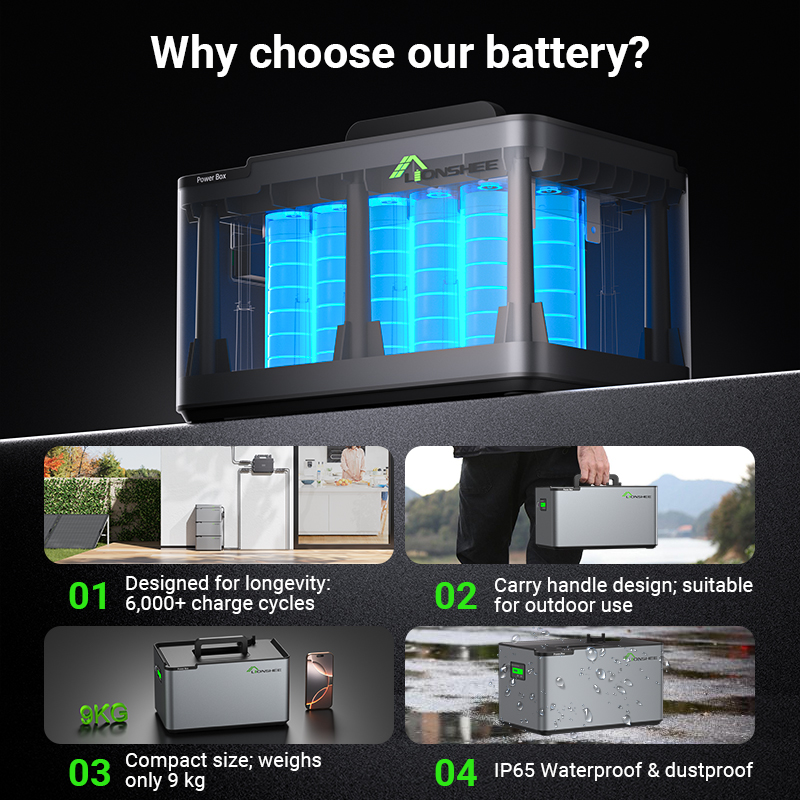

Manufacturer feature graphic. The weight printed on the image is rounded - the binding figure is 9.3 kg in the Technical data table below. |
Expandable to 6144 Wh, one module at a timeUp to 6 units can be connected in parallel for a total of 6144 Wh. Customers can start with a single Power Box and add modules as consumption grows, instead of paying up front for storage capacity that is not yet needed. |
 |

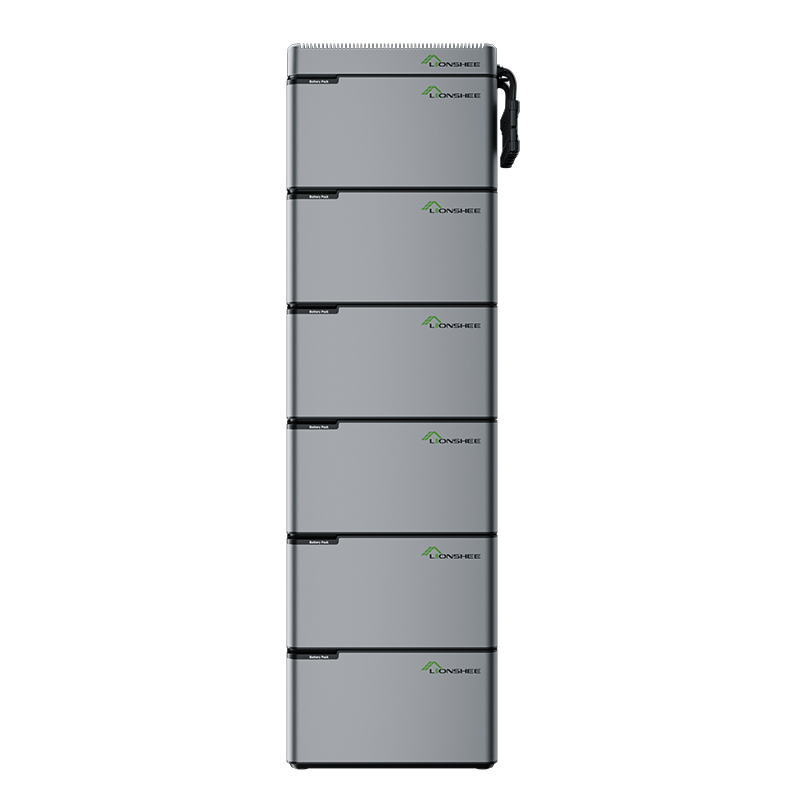

Product shot of six units stacked. Staged product photography, not a real customer installation. Binding figures: 1024 Wh per unit, 6144 Wh with 6 units. |
IP65, natural cooling, 9.3 kgThe housing is rated IP65 against dust and water jets and is cooled passively, so there is no fan and no running noise. At 9.3 kg and 320 x 200 x 196 mm it can be carried and installed by one person. |
 |

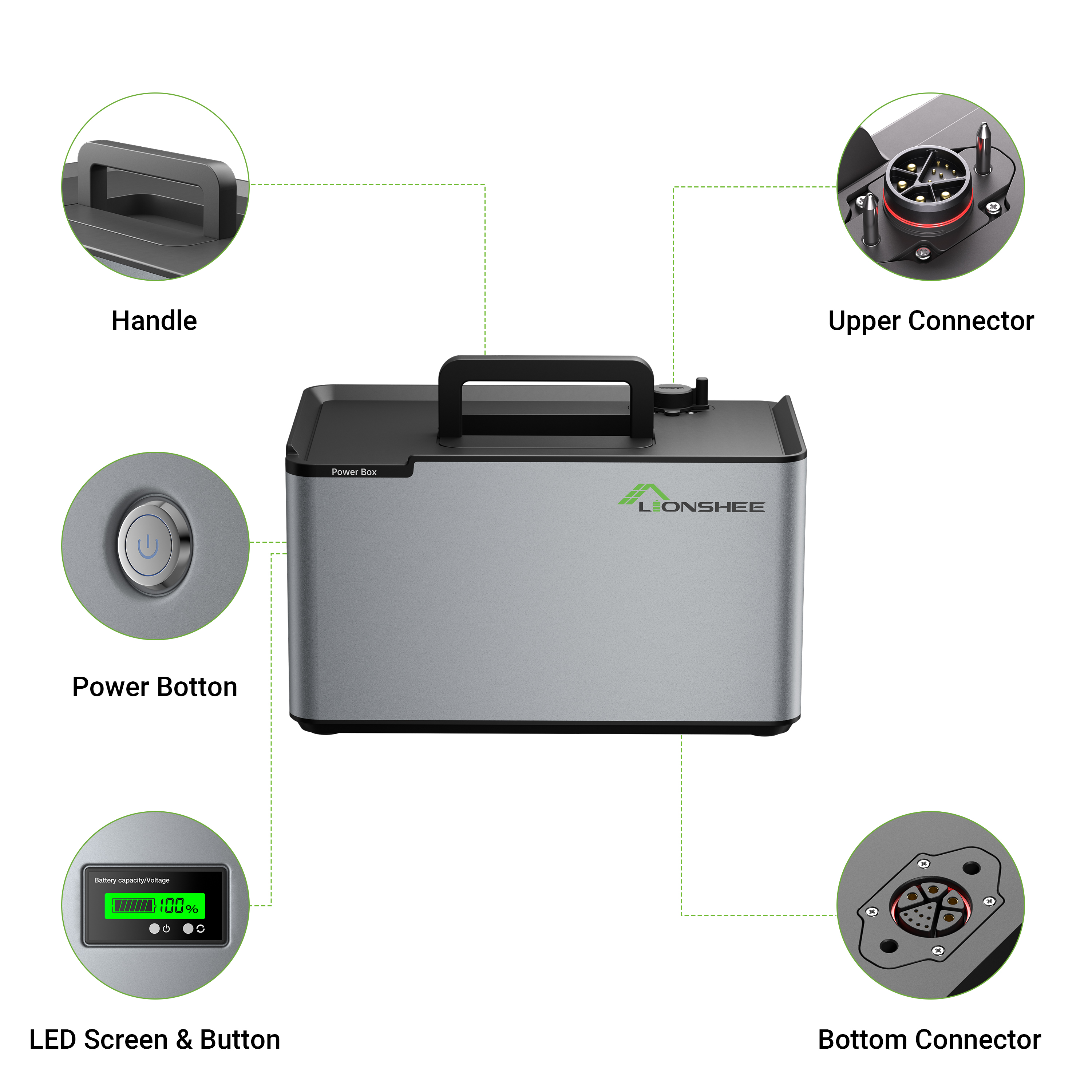

Manufacturer parts diagram. Port and control layout may vary by production batch; the binding specification is the Technical data table below. |
On-grid, off-grid and portableThe same unit works in grid-connected solar self-consumption, in off-grid systems and as portable outdoor power. It is also the storage module of the LIONSHEE Modular Balcony Energy Storage System, alongside LS-240W flexible panels, the LS-H1600 Smart Solar Hub and 800 W, 1600 W or 2000 W microinverters. |

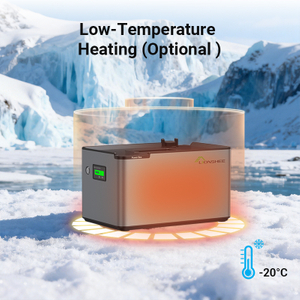

Optional low-temperature heatingLithium iron phosphate cells must not be charged below freezing. The optional automatic low-temperature heating warms the cells first, so the battery still accepts a charge in cold climates. Charging range 0~55 °C, discharge range -20~60 °C. |
Optional built-in fire extinguisherAn automatic fire extinguishing unit can be built into the enclosure. It acts inside the box, at the cell level, without waiting for someone to notice a problem - relevant wherever the battery sits close to living space. |
| Parameter | Value |
|---|---|
| Model | LS-L1024 |
| Nominal capacity | 1024 Wh |
| Nominal voltage | 51.2 V |
| Working voltage range | 40~58.4 V |
| Battery type | LiFePO4 |
| Dimensions (W x D x H) | 320 x 200 x 196 mm |
| Weight | 9.3 kg |
| Units in parallel | 6 (6144 Wh in total) |
| Charging temperature range | 0~55 °C |
| Discharge temperature range | -20~60 °C |
| Protection grade | IP65 |
| Cooling | Natural cooling |
| Cycle times | 6000 |
| Warranty | 5 years |
| Protocol type | CAN / RS-485 |
| Certification | CE, RoHS, MSDS |
| Options | Low-temperature heating, built-in fire extinguisher |
Source: Power Box Datasheet LS-L1024, edition 2026.07. Net weight per packing list 9.45 kg, gross weight 10.1 kg, single carton 405 x 265 x 245 mm.
| • | Grid-connected solar self-consumption |
| • | Balcony solar with a microinverter |
| • | Off-grid and hybrid systems |
| • | Home backup power |
| • | Garden house, workshop and outbuilding |
| • | Portable outdoor and camping power |
 |

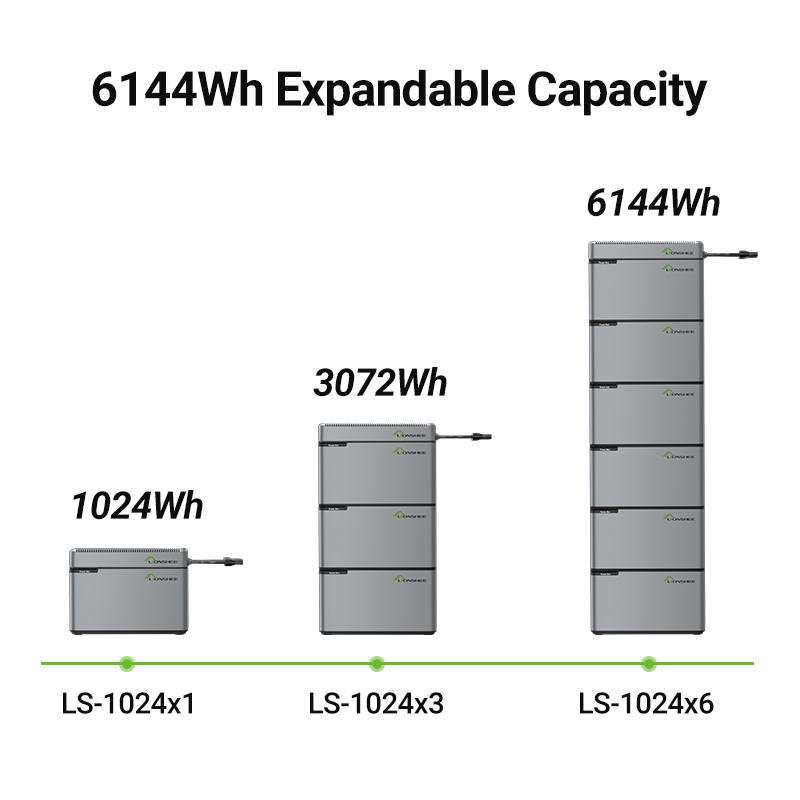

Manufacturer graphic on parallel expansion. Binding figures: 1024 Wh per unit, 3072 Wh with 3 units, 6144 Wh with 6 units. |
Shipping from our German and UK warehouses. If our stock is not enough for your quantity, we tell you before the order is confirmed rather than letting the delivery date quietly slip. |
Request a quotation for your projectYou will receive from us: | |
| • | Power Box Datasheet LS-L1024 as PDF |
| • | CE, RoHS and MSDS documents |
| • | Tiered pricing from your target quantity |
| • | Current stock in Germany and the United Kingdom with a shipping date |
Tell us quantity, destination country and whether you need the heating or fire extinguishing option - we reply with price, availability and shipping date.
