In short Cold mornings and a battery that will not take a charge, or a cell fault nobody notices until it is too late - those are the two failure modes that matter in home storage. The LIONSHEE LS-L1024 answers both with options: automatic low-temperature heating and a built-in fire extinguisher. Underneath sits a 1024 Wh A+ grade LiFePO4 pack rated for 6000 cycles behind an IP65 housing. Shipping from our German and UK warehouses. |
6000 Charge cycles | IP65 Protection grade | 1024 Wh Nominal capacity per unit | 6144 Wh Maximum with 6 units in parallel |
The LS-L1024 stores the solar energy a household produces during the day so it can be used in the evening instead of being fed back at a low tariff. The enclosure measures 320 x 200 x 196 mm and weighs 9.3 kg, small enough to sit under a window or on a balcony floor and light enough for one person to carry with the built-in handle. Cooling is passive: no fan, no running noise. Battery communication runs over CAN and RS-485.
Optional low-temperature heatingLithium iron phosphate cells must not be charged below freezing. The optional automatic low-temperature heating warms the cells first, so the battery still accepts a charge in cold climates. Charging range 0~55 °C, discharge range -20~60 °C. |
|
Application scene image of the optional low-temperature heating - not a real customer installation. Binding temperature ranges are in the Technical data table. |
Optional built-in fire extinguisherAn automatic fire extinguishing unit can be built into the enclosure. It acts inside the box, at the cell level, without waiting for someone to notice a problem - relevant wherever the battery sits close to living space. |
|
Application scene image of the optional fire extinguishing function - a symbolic rendering, not a real incident or installation. |

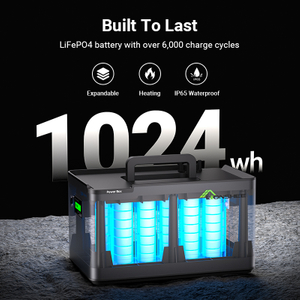

1024 Wh from A+ grade LiFePO4 cellsOne Power Box stores 1024 Wh at 51.2 V nominal, with a working voltage range of 40~58.4 V. The A+ grade LiFePO4 chemistry stays stable over a long service life, which is what makes 6000 cycles and a 5-year warranty possible. |
|
Manufacturer graphic on cycle life and BMS. Binding figures: 6000 cycles, 5-year warranty, as in the Technical data table. |
IP65, natural cooling, 9.3 kgThe housing is rated IP65 against dust and water jets and is cooled passively, so there is no fan and no running noise. At 9.3 kg and 320 x 200 x 196 mm it can be carried and installed by one person. |
|

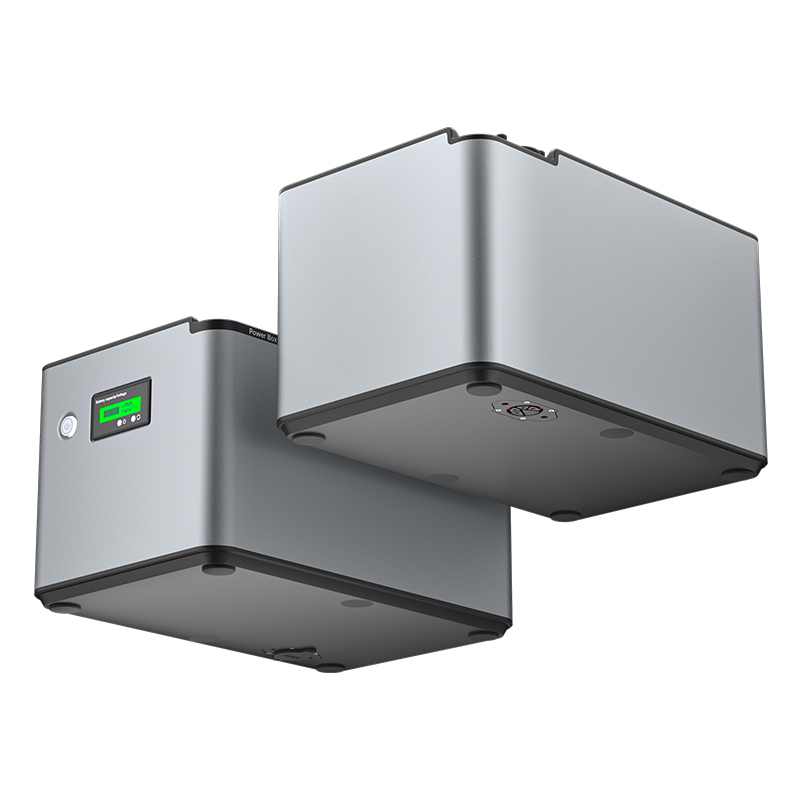

Product image of the LS-L1024, front and rear view. |

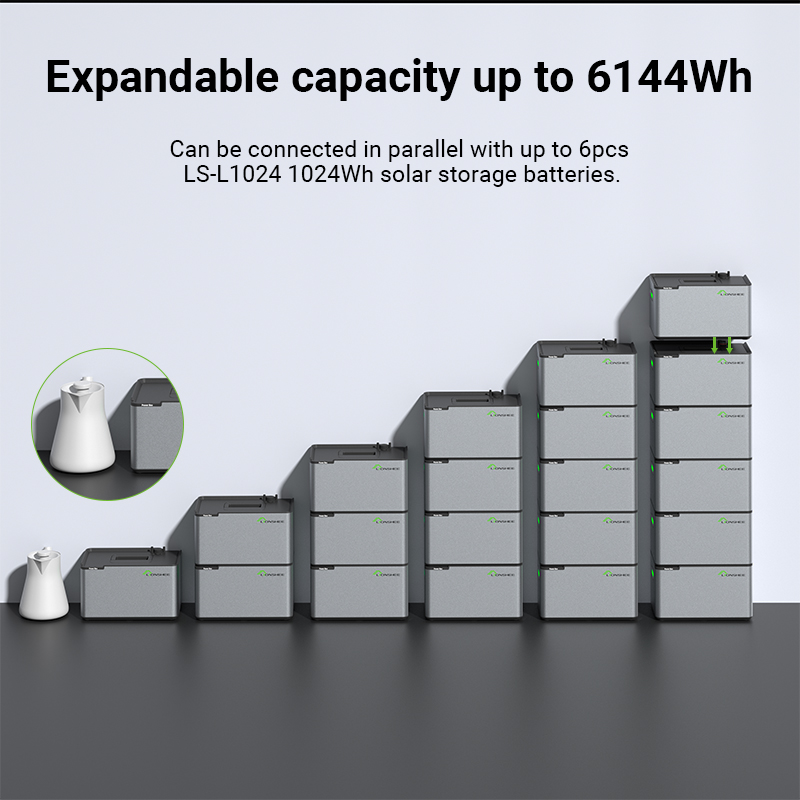

Expandable to 6144 Wh, one module at a timeUp to 6 units can be connected in parallel for a total of 6144 Wh. Customers can start with a single Power Box and add modules as consumption grows, instead of paying up front for storage capacity that is not yet needed. |

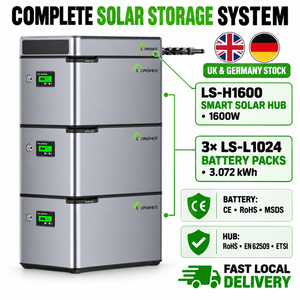

On-grid, off-grid and portableThe same unit works in grid-connected solar self-consumption, in off-grid systems and as portable outdoor power. It is also the storage module of the LIONSHEE Modular Balcony Energy Storage System, alongside LS-240W flexible panels, the LS-H1600 Smart Solar Hub and 800 W, 1600 W or 2000 W microinverters. |
| Parameter | Value |
|---|---|
| Model | LS-L1024 |
| Nominal capacity | 1024 Wh |
| Nominal voltage | 51.2 V |
| Working voltage range | 40~58.4 V |
| Battery type | LiFePO4 |
| Dimensions (W x D x H) | 320 x 200 x 196 mm |
| Weight | 9.3 kg |
| Units in parallel | 6 (6144 Wh in total) |
| Charging temperature range | 0~55 °C |
| Discharge temperature range | -20~60 °C |
| Protection grade | IP65 |
| Cooling | Natural cooling |
| Cycle times | 6000 |
| Warranty | 5 years |
| Protocol type | CAN / RS-485 |
| Certification | CE, RoHS, MSDS |
| Options | Low-temperature heating, built-in fire extinguisher |
Source: Power Box Datasheet LS-L1024, edition 2026.07. Net weight per packing list 9.45 kg, gross weight 10.1 kg, single carton 405 x 265 x 245 mm.
| • | Grid-connected solar self-consumption |
| • | Balcony solar with a microinverter |
| • | Off-grid and hybrid systems |
| • | Home backup power |
| • | Garden house, workshop and outbuilding |
| • | Portable outdoor and camping power |
|
Application scene image of parallel expansion with a household load - not a real customer installation. Run time depends on the actual load. |
Shipping from our German and UK warehouses. If our stock is not enough for your quantity, we tell you before the order is confirmed rather than letting the delivery date quietly slip. |
Request a quotation for your projectYou will receive from us: | |
| • | Power Box Datasheet LS-L1024 as PDF |
| • | CE, RoHS and MSDS documents |
| • | Tiered pricing from your target quantity |
| • | Current stock in Germany and the United Kingdom with a shipping date |
Tell us quantity, destination country and whether you need the heating or fire extinguishing option - we reply with price, availability and shipping date.
