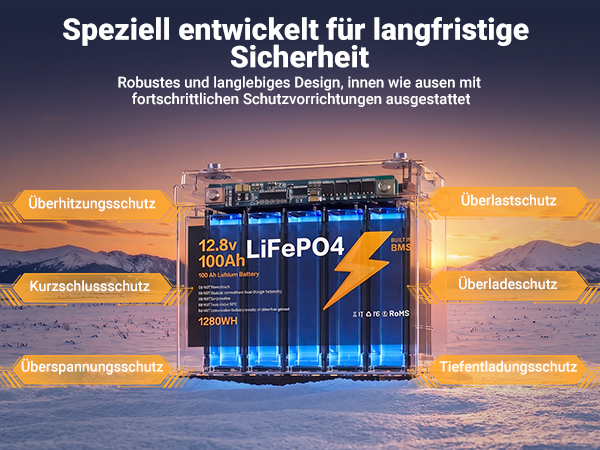

Built-in BMS protection includes overcharge protection, over-discharge protection, charge overcurrent protection, discharge overcurrent protection, and short circuit protection.
Thermal protection from the BMS includes discharge high temperature cut-off and charge high temperature cut-off, preventing operation outside safe limits.
Charging temperature range is from -10°C to 50°C, allowing use in cold and moderately hot environments, though best results are achieved between 10°C and 35°C.
Discharging temperature range extends from -15°C to 50°C, supporting operation in colder conditions than charging.
Operating ambient temperature is specified from -20°C to 50°C, with recommended storage between 10°C and 35°C and humidity below 70%.
Series connection capability: up to four identical 12.8V 100Ah batteries can be connected in series to form a 48V (51.2V nominal) battery system.
Parallel connection capability: up to four identical batteries can be connected in parallel, increasing total capacity to 400Ah while maintaining 12.8V.
Maximum system expansion supports connection of up to 16 identical batteries in various series/parallel combinations (e.g., 4S4P).
Recommended charging method for full capacity: charge at 0.2C (20A) for about 5 hours to reach 100% state of charge, or at 0.5C (50A) for about 2 hours to reach approximately 97% capacity.

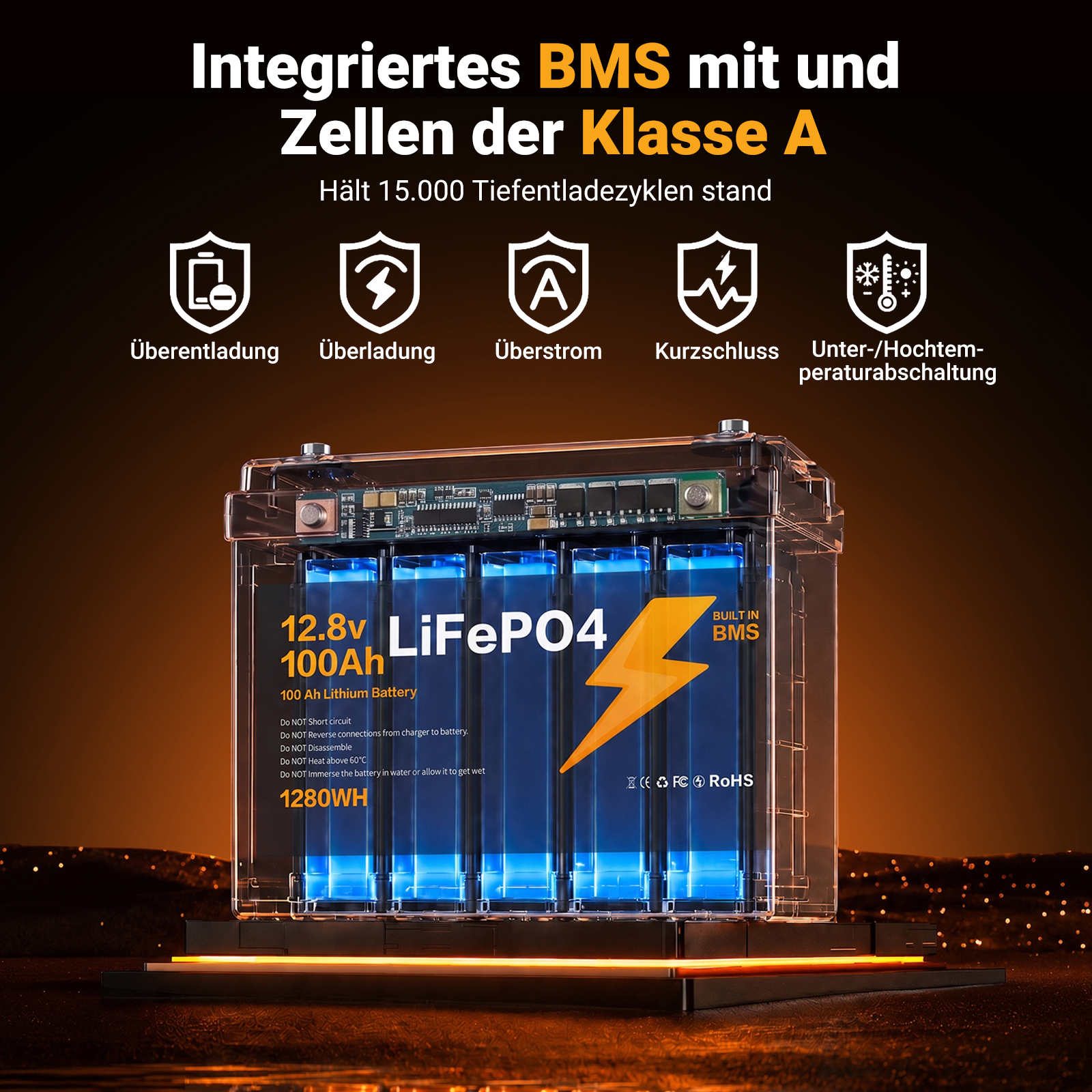

Battery cell type used in the 100Ah model is 38121-15000mAh LiFePO₄ cells, with Grade-A construction and no Bluetooth function on this model.
Technical Specifications
| Parameter | Value |
|---|---|

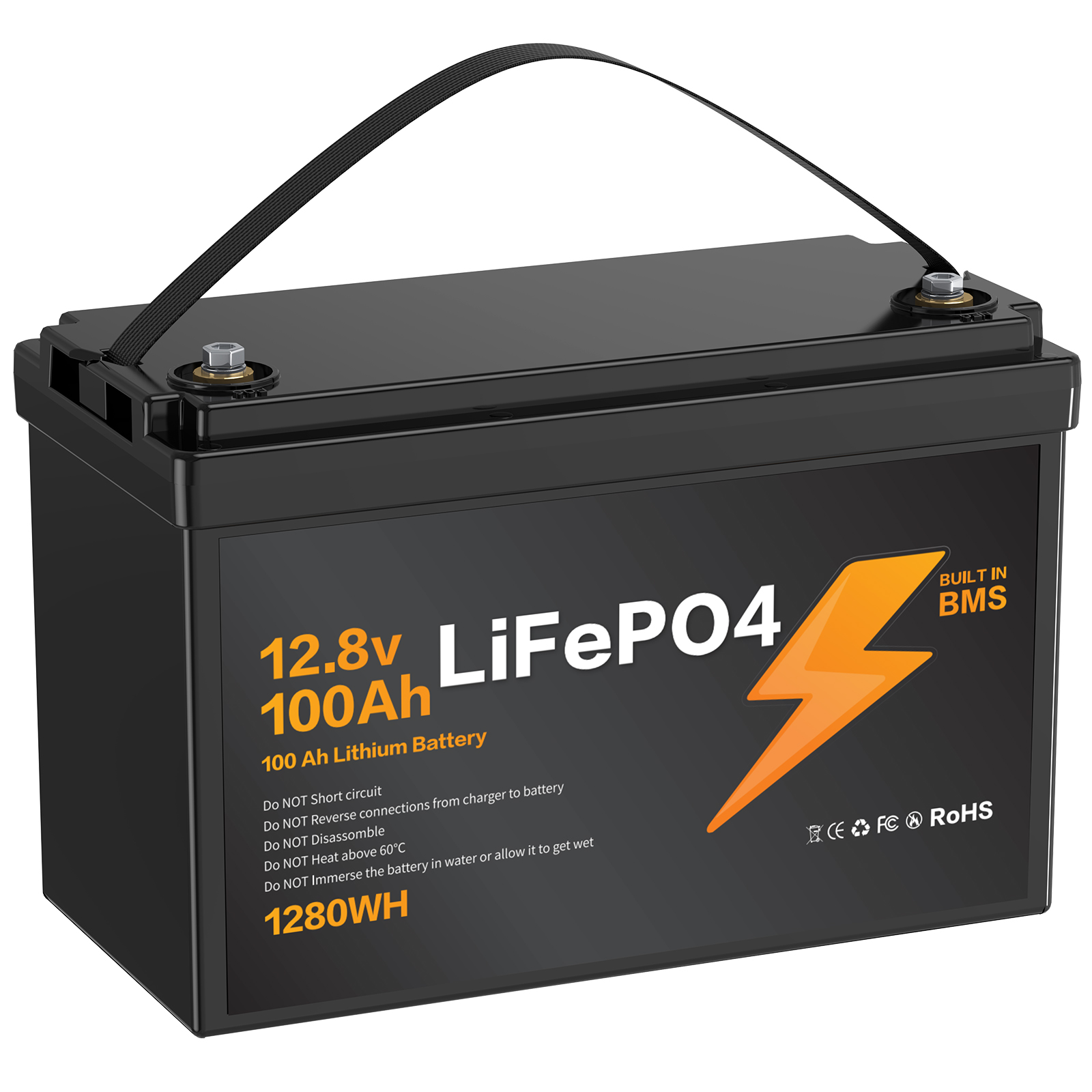

| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Model | HD12100-12 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Total Energy | 1280Wh |
| Standard Charging Voltage | 14.6V |
| Standard Discharge Cut off Voltage | 9.2V |
| Maximum Continuous Charging Current | 50A |
| Maximum Continuous Output Power | 1280W |
| Initial Internal Resistance | ≤50mΩ |
| Dimensions (L × W × H) | 333mm × 176mm × 221mm (±5mm) |
| Weight | ≤13kg (±50g) |
| Built in BMS | Yes |
| BMS Protection Functions | Overcharge, over discharge, charge overcurrent, discharge overcurrent, short circuit, discharge high temperature cut off, charge high temperature cut off |
| Charging Temperature Range | -10°C to 50°C |
| Discharging Temperature Range | -15°C to 50°C |
| Operating Ambient Temperature | -20°C to 50°C (recommended 10°C to 35°C, humidity below 70%) |
| Storage Temperature Range | -20°C to 50°C (recommended 10°C to 35°C, humidity below 70%) |
| Series Connection | Up to 4 identical batteries (51.2V system) |
| Parallel Connection | Up to 4 identical batteries (400Ah total capacity) |
| Maximum Batteries in Series/Parallel | Up to 16 identical batteries (e.g., 4S4P) |
| Recommended Charging Current (0.2C) | 20A for 5 hours to 100% |
| Recommended Charging Current (0.5C) | 50A for 2 hours to approx. 97% |
| Recommended Charging Voltage Range | 14.2V to 14.6V |
| Cell Type | 38121-15000mAh LiFePO₄ |
| Bluetooth Function | No |

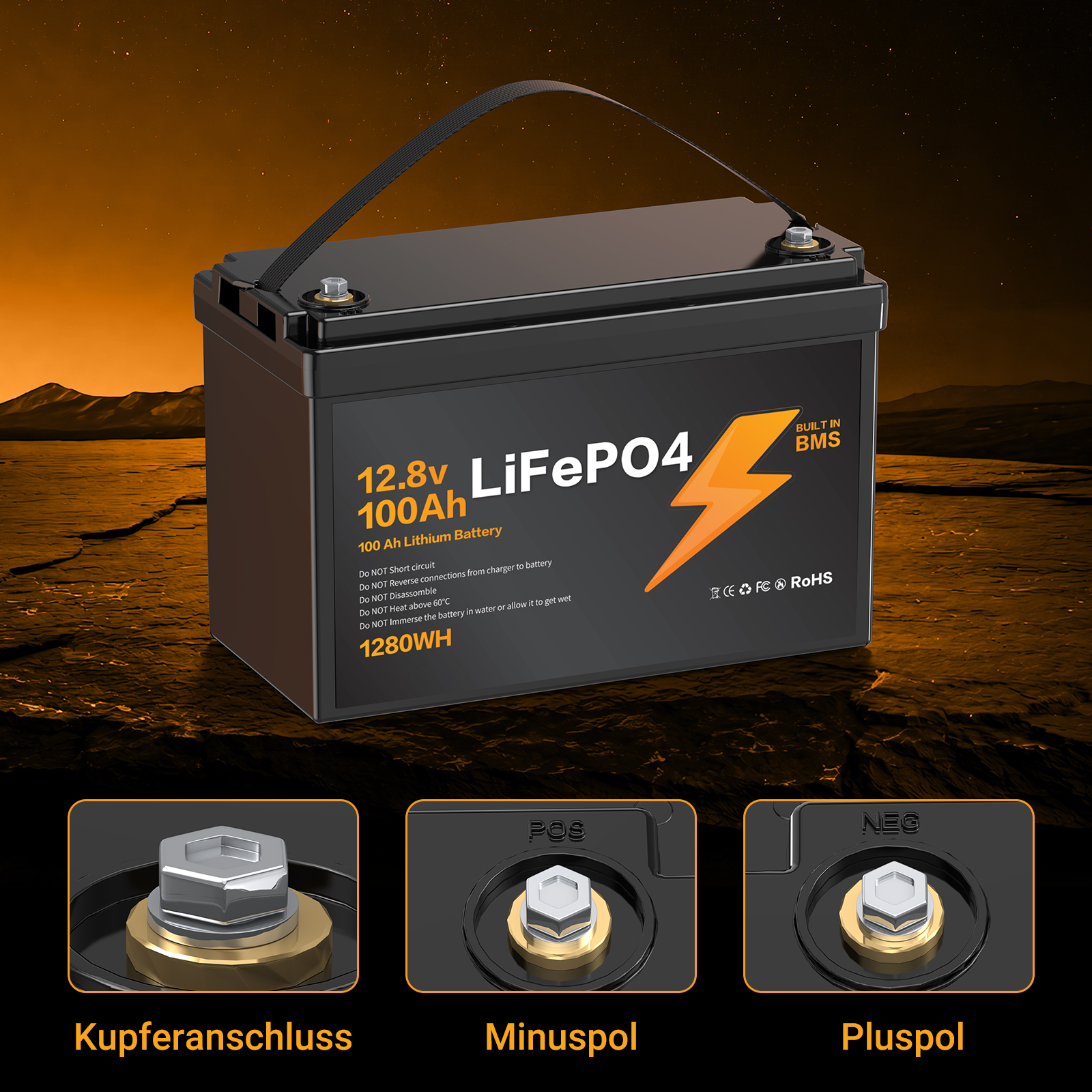

| Terminal Type | M8 × 14mm bolts (copper) |
| Included Accessories | Terminal bolts (2), insulating caps (2) |
