A balcony solar system with battery storage gives apartments, small homes, and other space-limited properties a practical way to produce and use more solar energy. Solar panels generate electricity during daylight hours, while a compatible battery can store part of the unused energy for evening consumption.
Choosing the right system requires more than comparing wattage or battery capacity. Panel area, shading, compatibility, household loads, and local grid rules all affect the result.
Here is what buyers should check before selecting a system.

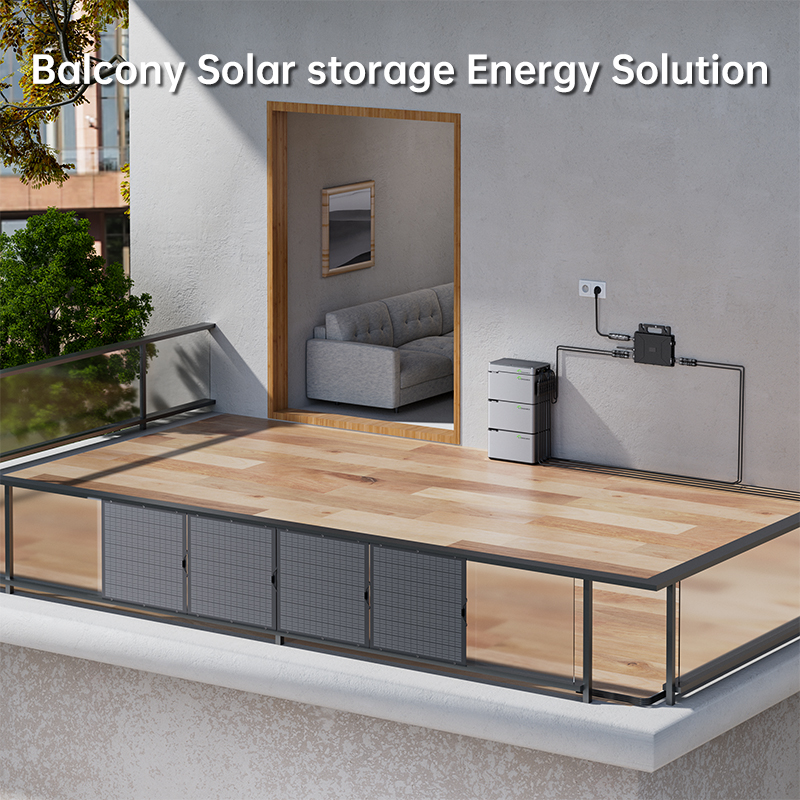

A compact balcony solar storage layout combining railing-mounted panels, an energy hub, and modular battery storage.
A balcony energy storage system is a compact solar solution designed for balconies, terraces, gardens, and other small installation areas. A typical configuration may include:
Solar panels
A microinverter or solar energy hub
One or more battery modules
Solar and AC cables
Mounting accessories
Monitoring or energy-management functions, where supported
The panels generate DC electricity. The hub or inverter manages how power reaches household loads and how surplus energy is stored for later use.
Not every battery works with every microinverter. Voltage range, input current, connectors, control logic, communication, and permitted battery configurations must all match. Buyers should therefore choose a tested system combination rather than assemble components based only on connector appearance.
A conventional plug-and-play solar kit reduces grid consumption while the sun is shining. An apartment may use little electricity at midday and more after work, so some solar energy may not be consumed on site without storage.
A battery can shift solar energy from daytime to evening. It may be useful when:
The property is lightly occupied during sunny hours
Evening loads include lighting, Wi-Fi, entertainment devices, or small appliances
Export compensation is low or unavailable
The buyer wants higher self-consumption or future expansion
If most solar generation is already consumed immediately, a battery may provide a smaller benefit. Compare likely daily surplus with usable battery capacity and evening demand.
An 800W balcony system is a common compact size, but 800W is rated power under test conditions, not continuous output throughout the day.
Actual production depends on:
Geographic location and season
Panel orientation and tilt
Balcony or building shade
Panel temperature
Dirt and maintenance
Cable, conversion, and storage losses
Inverter and local export limits
A simple planning formula is:
Daily energy (kWh) = panel capacity (kW) × peak sun hours × system factor
For illustration, an 800W array receiving four peak sun hours with an assumed system factor of 0.80 would produce approximately:
0.8 × 4 × 0.80 = 2.56kWh per day
This is not a production guarantee. Shade and panel angle can change the result; local solar data provides a better estimate.
Match battery capacity to usable solar surplus. An oversized battery may remain partly charged, while an undersized one may fill early.
Start with three questions:
How much energy does the solar array normally produce each day?
How much of that energy is consumed immediately?
Which evening loads should the stored energy support, and for how long?
A 1kWh-class module may suit modest evening loads. A modular 2kWh arrangement offers more flexibility where daytime surplus is higher. Larger storage should be justified by generation and consumption data.
Compare usable capacity, not only nominal capacity, because operating limits and conversion losses reduce energy available to appliances.

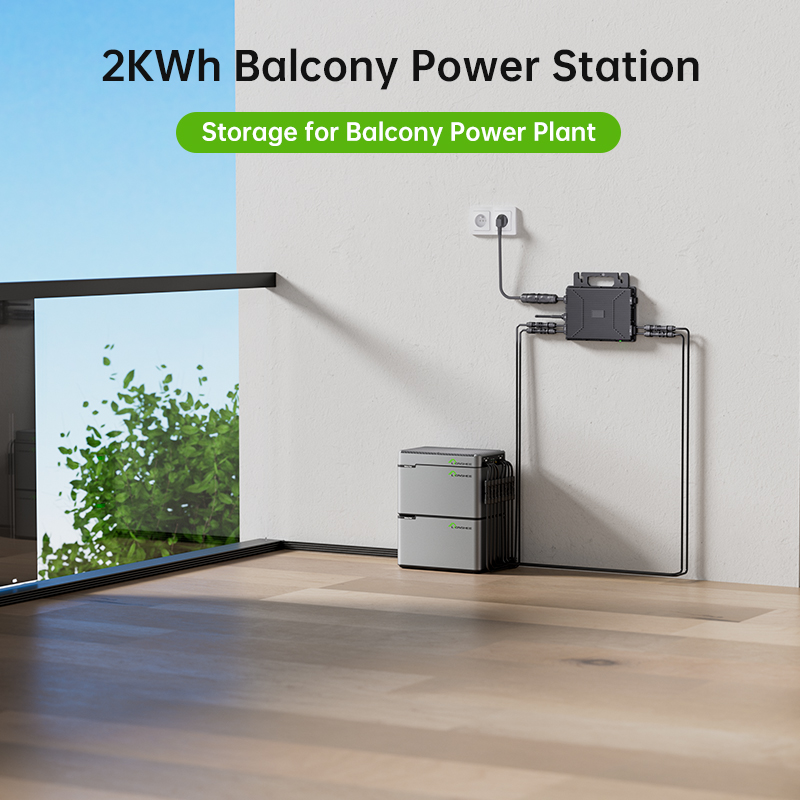

A 2kWh-class modular storage concept for a compact balcony power system. Final configuration depends on product compatibility and local requirements.
Component | What to Check | Why It Matters |
|---|---|---|
Solar panels | Rated power, voltage, current, dimensions, weight, mounting method | Determines fit and compatibility |
Energy hub or controller | PV input range, MPPT channels, battery interface | Controls energy flow and solar harvesting |
Battery | Usable capacity, chemistry, protection, expansion rules | Affects runtime and future scalability |
Microinverter | Continuous output, input range, grid standard | Converts DC energy to grid-compatible AC |
Cables and connectors | Type, length, rating, weather suitability | Supports safe and practical installation |
Monitoring | Solar, battery, and output data | Helps users understand performance |
Documentation | Datasheets, manuals, warranty, test reports | Supports installation and purchasing review |
Rigid panels suit fixed installations with strong mounting structures. Flexible panels can help where lower weight or a gently curved surface matters. Compare weight, wind exposure, railing strength, shading, cable routing, and permitted bend radius. Flexible panels still require secure mounting; foldable panels are generally better for temporary use.
Do not assume that a grid-connected balcony system will operate during a blackout. Grid-tied microinverters normally stop when utility power is unavailable as an anti-islanding measure.
Backup operation requires a product designed with a dedicated isolated or off-grid output. Buyers who need outage support should confirm:
Which outlet or output remains active
Continuous and surge power limits
Transfer behavior
Supported appliances
Battery runtime at the expected load
Battery storage alone does not make a system a home backup solution.

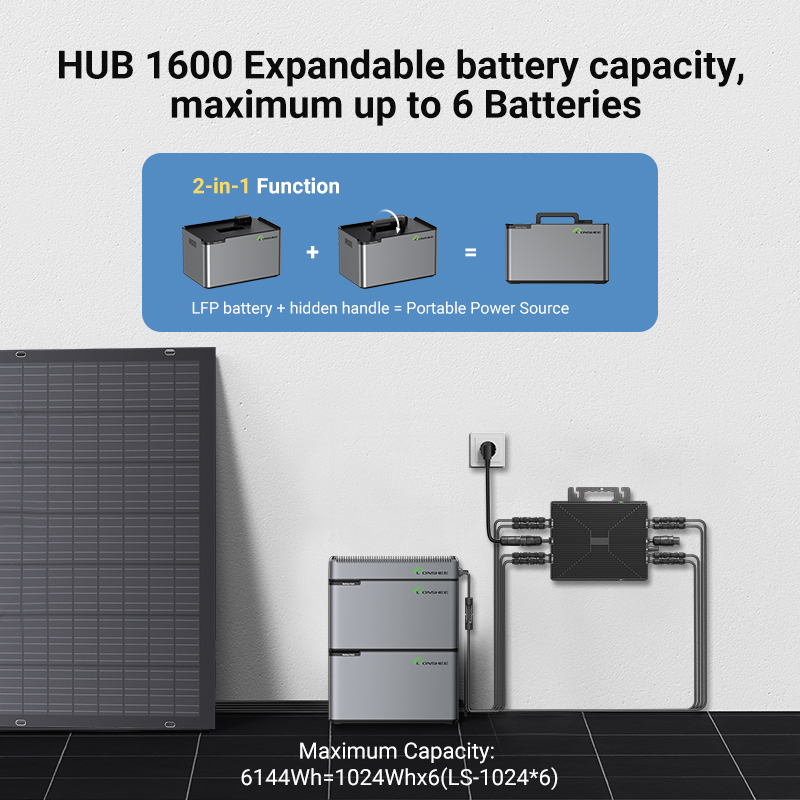

An example LIONSHEE component set with a modular battery, solar control unit, microinverter, and AC cable. Confirm the exact model combination for each project.
Before requesting a quotation, collect the following information:
Installation country and grid type
Available balcony, terrace, roof, or garden area
Panel direction, tilt, and expected shading
Typical daytime and evening electricity use
Preferred battery capacity and future expansion needs
Whether backup power is required
Required plug, cable length, and mounting accessories
Applicable registration, landlord, building, and electrical requirements
This information helps a supplier recommend a compatible configuration.
LIONSHEE develops panels, microinverters, batteries, portable power equipment, and balcony storage solutions. Current product records include the LS-PV800Mi balcony kit, LS-L1024 battery module, LS-800Mi microinverter, flexible panels, and 30W–400W foldable panels.
Options vary by destination. Confirm the bill of materials, specifications, grid compatibility, certificates, and warranty for the exact models ordered.
For a tailored system, provide the installation country, panel space, daily energy use, and desired battery size.
Explore LIONSHEE products: https://www.lionshee.com/products.html
Visit the Alibaba store: https://lionshee.en.alibaba.com/
It can offset small and continuous household loads, but suitability depends on sunlight, shading, orientation, inverter limits, and consumption. Compare estimated daily kWh production with the apartment’s load profile.
Possibly, but only after checking voltage, current, connectors, communication, and system architecture. A visually compatible connector does not prove electrical or control compatibility.
The better size is the one that matches normal solar surplus and evening demand. A 2kWh battery offers more storage, but it may be unnecessary if the solar array rarely produces enough surplus to charge it.
Solar panels can still generate electricity under diffuse light, but output is normally lower than under direct sunlight. Local weather, shading, panel angle, and system design determine the result.
Requirements vary by country, property, lease, and building. Renters should check landlord or building approval, secure mounting, local electrical rules, grid registration, and insurance conditions before installation.
They can be suitable when the specific product is rated for the environment and installed within its mounting, ventilation, weather, and bend-radius requirements. Review the manufacturer’s instructions for the exact model.
