Description

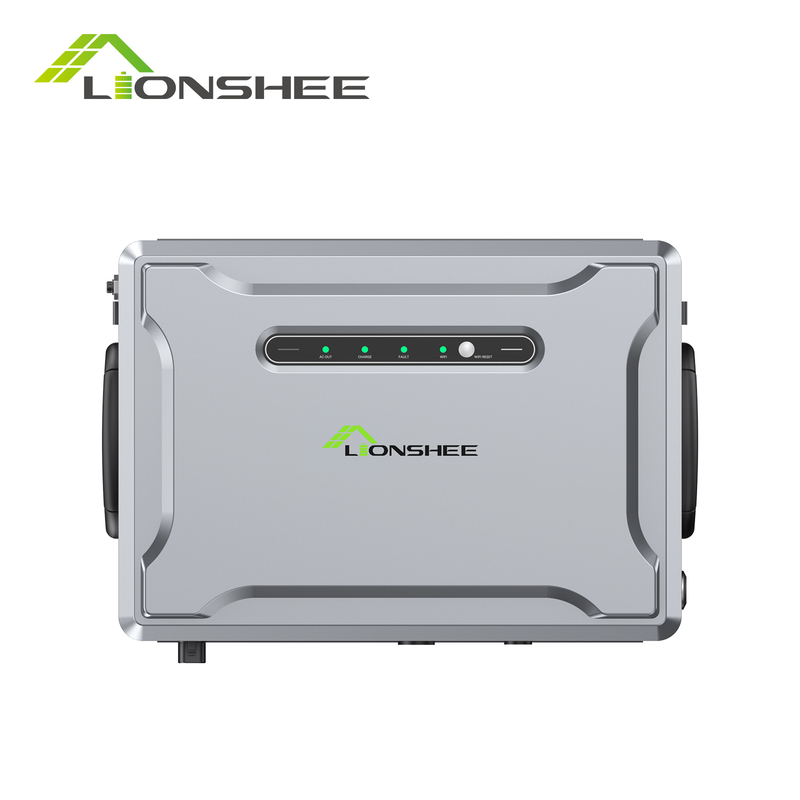

LIONSHEE IM series hybrid inverters are available in 1600W and 2400W models. The inverters are equipped with the functions of utility charging, solar charging, off-grid inverter with load, UPS, on-grid, parallel connection, self-generation and self-consumption, and AC coupling. Off-grid and on-grid switching with one button, widely used in indoor balcony e nergy storage, garden energy storage and outdoor such as small power scenarios. The balcony energy storage system consists of a micro hybrid inverter and batteries that supply power to the load through energy conversion. Meanwhile, the excess energy is stored in the battery and used as a portable power supply. With plug-and-play design, easy installation can be done by yourself, which greatly saves installation and maintenance costs. Use APP to intelligently adjust and control the energy according to the actual power demand.
Technical Specifications
| PV Input Data(DC) | Output Data(AC) | Product Details |
| Max input voltage:100V | Max. Continuous output power: 1600W& 2000W | Type of enclosure: IP65 |
| MPPT voltage range(V):10-100V | Peak power :3200W & 4800W | Weight: 8kg |
| Maximum input current:16A*2 | Nominal output voltoge: 230V | Warranty: 5 Years |
| Maximum input power:800w*2 | Rated output current: 7A & 10.4A | Dimensions:360mm*256mm*115mm |
| MPPT quantity:2 | Output frequency:50HZ | Support Battery:Lithium-ion 16S，ternary cell 14S |
Description
LIONSHEE IM series hybrid inverters are available in 1600W and 2400W models. The inverters are equipped with the functions of utility charging, solar charging, off-grid inverter with load, UPS, on-grid, parallel connection, self-generation and self-consumption, and AC coupling. Off-grid and on-grid switching with one button, widely used in indoor balcony e nergy storage, garden energy storage and outdoor such as small power scenarios. The balcony energy storage system consists of a micro hybrid inverter and batteries that supply power to the load through energy conversion. Meanwhile, the excess energy is stored in the battery and used as a portable power supply. With plug-and-play design, easy installation can be done by yourself, which greatly saves installation and maintenance costs. Use APP to intelligently adjust and control the energy according to the actual power demand.
Technical Specifications
| PV Input Data(DC) | Output Data(AC) | Product Details |
| Max input voltage:100V | Max. Continuous output power: 1600W& 2000W | Type of enclosure: IP65 |
| MPPT voltage range(V):10-100V | Peak power :3200W & 4800W | Weight: 8kg |
| Maximum input current:16A*2 | Nominal output voltoge: 230V | Warranty: 5 Years |
| Maximum input power:800w*2 | Rated output current: 7A & 10.4A | Dimensions:360mm*256mm*115mm |
| MPPT quantity:2 | Output frequency:50HZ | Support Battery:Lithium-ion 16S，ternary cell 14S |
