English Views: 2 Author: Lionshee Publish Time: 2026-07-21 Origin: Lionshee
An Italian apartment customer installed a LIONSHEE balcony solar system with four 240W flexible solar panels, four 1024Wh batteries, one 1600W microinverter, and one 1600W Smart Solar Hub.

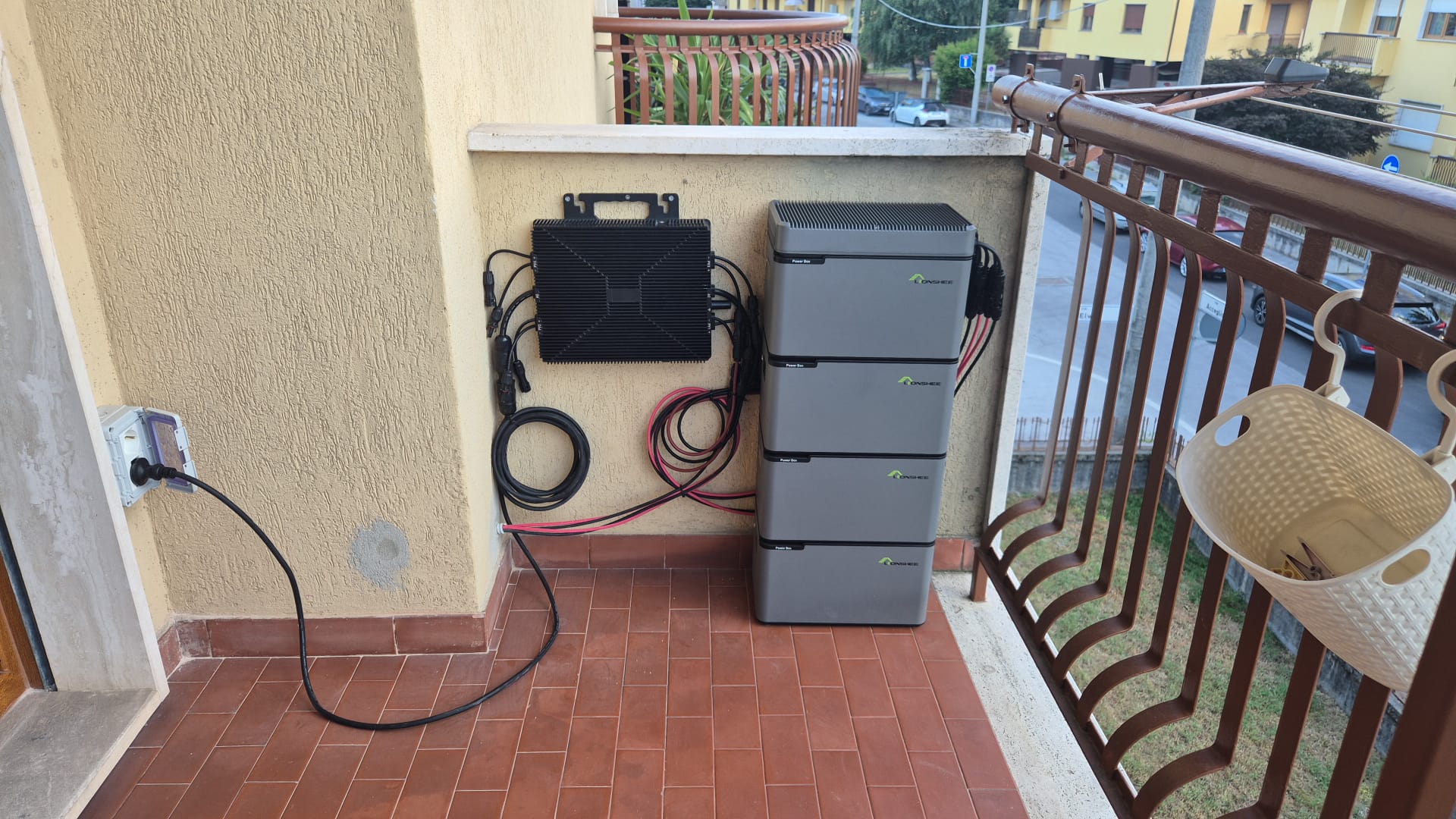

Real installation photo showing the Smart Solar Hub, microinverter, and four stacked battery modules on the customer's balcony.
Project location | Italy |
|---|---|
Application | Apartment balcony solar system |
Solar panels | 4 pcs LIONSHEE 240W flexible solar panels |
Solar capacity | 960W total rated PV capacity |
Battery storage | 4 pcs LS-L1024 Power Box batteries, 4096Wh total nominal capacity |
Power conversion | 1 pc 1600W microinverter |
Energy management | 1 pc LS-H1600 Smart Solar Hub |
Many apartment residents do not have access to a private roof. A balcony solar system gives them a more practical way to use available outdoor space for solar generation.
For this Italian apartment, the customer used four 240W flexible solar panels. Compared with traditional rigid panels, flexible panels are lighter and easier to arrange in compact or non-standard balcony spaces.

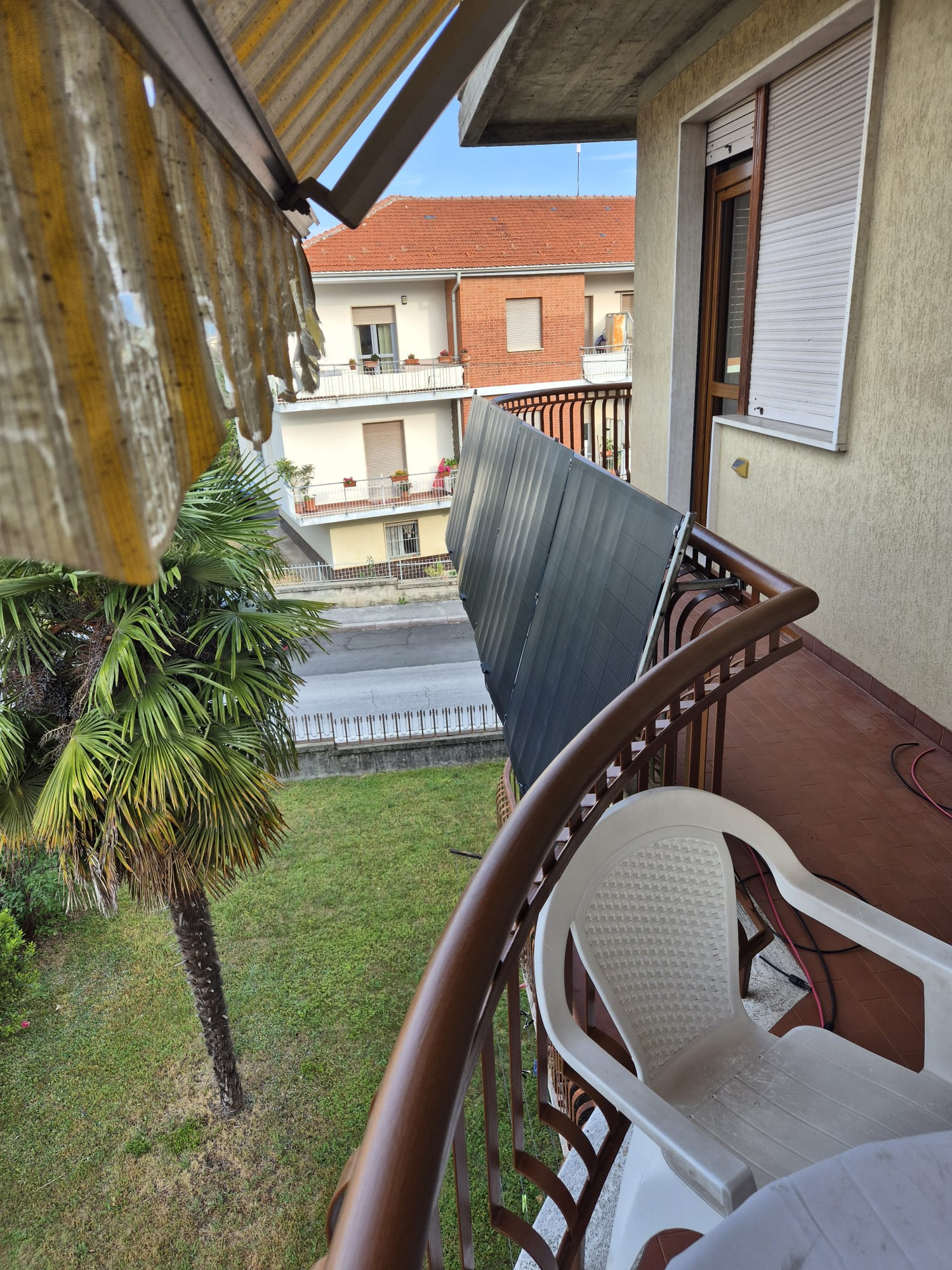

The flexible solar panels are installed along the balcony area to make use of limited outdoor space.
Four 240W flexible solar panels for solar input
Four 1024Wh LS-L1024 Power Box batteries for energy storage
One LS-H1600 Smart Solar Hub for power management
One 1600W microinverter for AC output
4 x 240W flexible solar panels + 4 x 1024Wh batteries = 960W PV input and 4096Wh nominal storage capacity.
Product | Core Parameters |
|---|---|
240W flexible solar panel | 240W maximum power, IP67 junction box, 1150 x 1090 x 2mm module size, lightweight flexible design |
LS-L1024 Power Box | 1024Wh per battery, 51.2V nominal voltage, LiFePO4 battery, expandable up to 6 units, 6000 cycle times |
LS-H1600 Smart Solar Hub | 1600W output, 1600W battery charging power, PV input 800W x 2, IP65 protection, WiFi / RS485 / CAN communication |
1600W microinverter | 1600W rated AC output, 4 MPPTs, 230V nominal output, IP67 enclosure, WiFi monitoring |
During the day, the flexible solar panels generate DC power from sunlight. The Smart Solar Hub manages solar input and battery charging. The battery modules store surplus energy, and the microinverter supports AC output for apartment use.

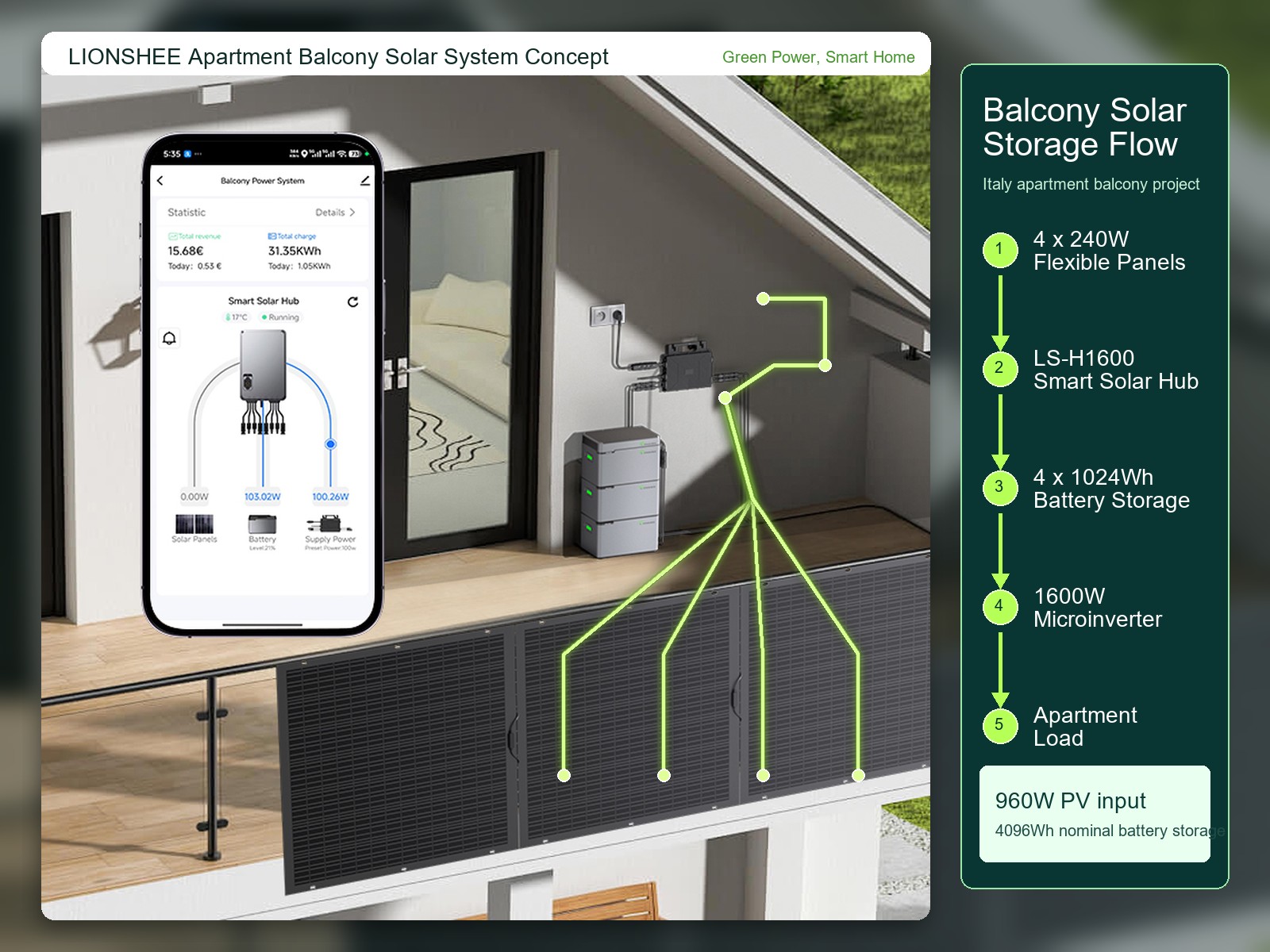

Scene concept image using real LIONSHEE product photos to show the solar-to-storage-to-home energy flow.
960W solar input can be built from four 240W flexible panels.
Four 1024Wh batteries provide 4096Wh of nominal storage capacity.
The LS-H1600 Smart Solar Hub helps manage solar power, storage, and usage.
A 1600W microinverter supports grid-connected AC output.
Flexible panels are practical for apartment balcony installations where space and weight matter.
LIONSHEE balcony solar systems are designed for apartment users, residential balconies, gardens, terraces, and small rooftop spaces. The system can combine flexible solar panels, modular batteries, smart solar hubs, and microinverters according to the installation space and power requirements.
