Description

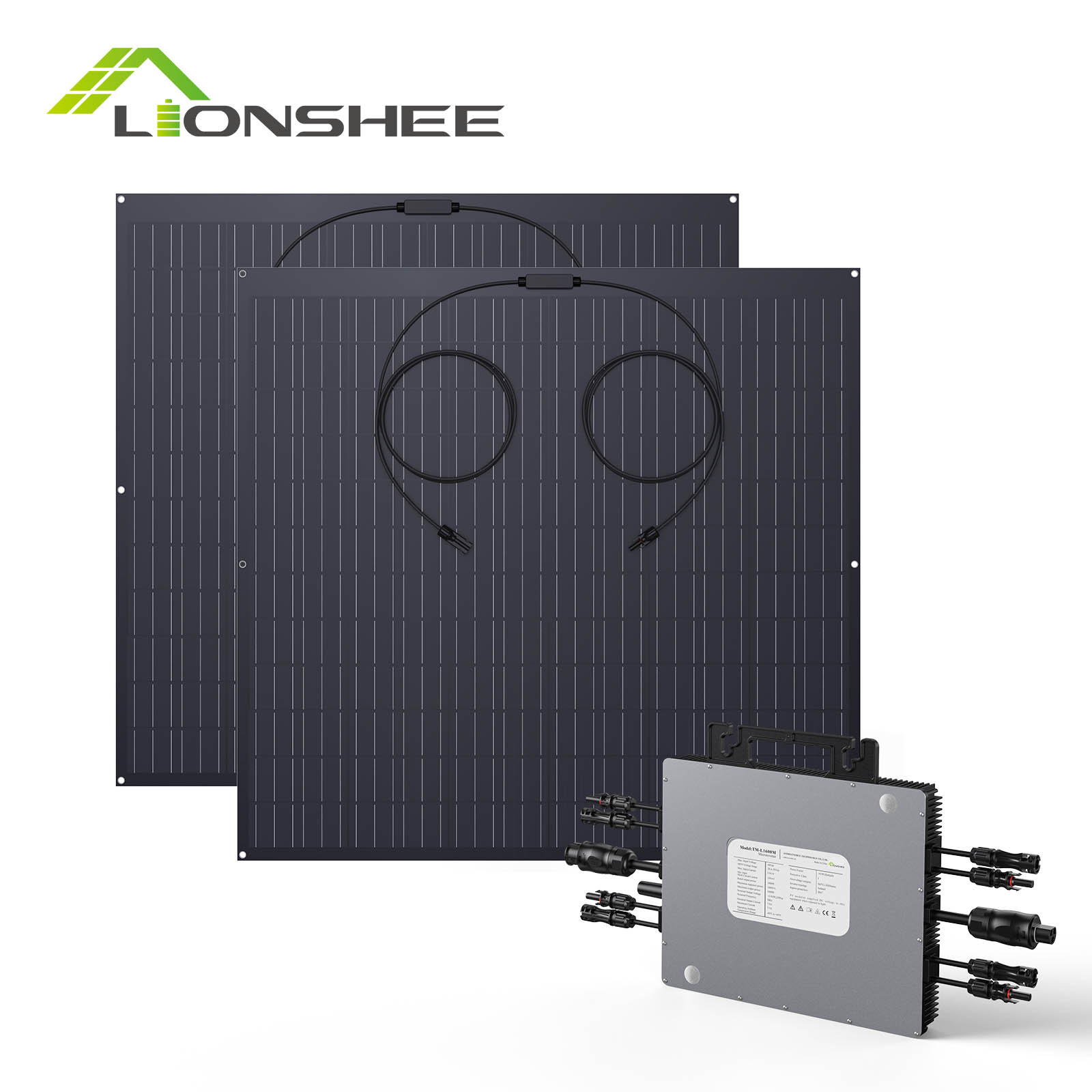

LS-L2000M microinverter has 800W output power and is suitable for household, small-scale industries and commercial scenarios.
Each microinverter can connect to 2 solar modules, with MPPT and monitoring maximizing the power production of your installation.
The whole machine adopts metal housing to promote heat dissipation and is durable, with an IP67 protection level to adapt to various harsh environments.
Built-in intelligent Wi-Fi module, real-time monitoring and fault identification.
Technical Specifications
| Input Data(DC) | Output Data(AC) | Protection Function |
| Recommended solar panel input power: 280W-550W | Max. Continuous output power: 1600W | Type of enclosure: IP67 |
| Number of DC input connections: MC4*2 | Nominal output voltoge: 230V | Protective class: Class 1 |
| Max. Input voltage: 60V | Output voltage range: 184-253W | Operating ambient temp.: -40°C to +65°C |
| PV operating voltage: 25-55V | Max. Continuous output current: 7A | Indication light quantity: Working status: Led light+WiFi Signal Led light |
| Start-up voltage: 20V | Nominal output frequency: 50Hz | Communication connection mode: WI-Fi/2.4G |
| MPPT tracking range: 25-55V | Output frequency range: 45 - 55Hz | Cooling method: Natural cooling(no fan) |
| MPPT tracking accuracy: >99.5% | Maximum number of branch circuit connections: 230VAC: 5sets | Working environment: Indoor and Outdoor |
| Max. Continuous input current: 13A*4 | Peak efficiency: 96% | Weight：7KG, Size (L*W*H): 312mm*301mm*43mm |
